M15733/62-0001
lmages are for reference only.M15733/62-0001
FILTER LC(PI) 1500PF CUSTOM
DatasheetAxial, Eyelet - 1 Turret Lead
44,208 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 1500pF 10 A Axial, Eyelet - 1 Turret Lead
M15733/62-0001
| Category | Filters - EMI-RFI Filters LC-RC Networks - |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (Pi) |
| Center / Cutoff Frequency | - |
| Attenuation Value | 70dB @ 1GHz ~ 10GHz |
| Resistance - Channel (Ohms) | - |
| Current | 10 A |
| Values | C = 1500pF |
| ESD Protection | No |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Voltage - Rated | 200V |
| Mounting Type | Custom |
| Package / Case | Axial, Eyelet - 1 Turret Lead |
| Size / Dimension | 0.190" Dia x 0.406" L (4.83mm x 10.31mm) |
| Height | - |
| Number of Channels | 1 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

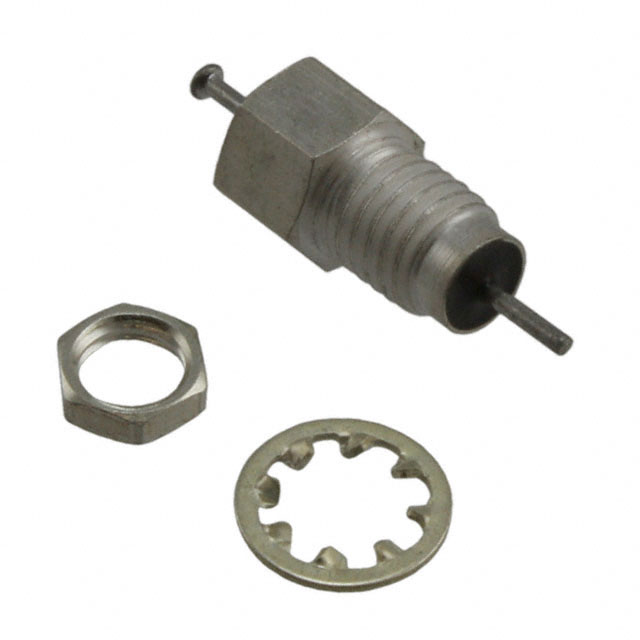

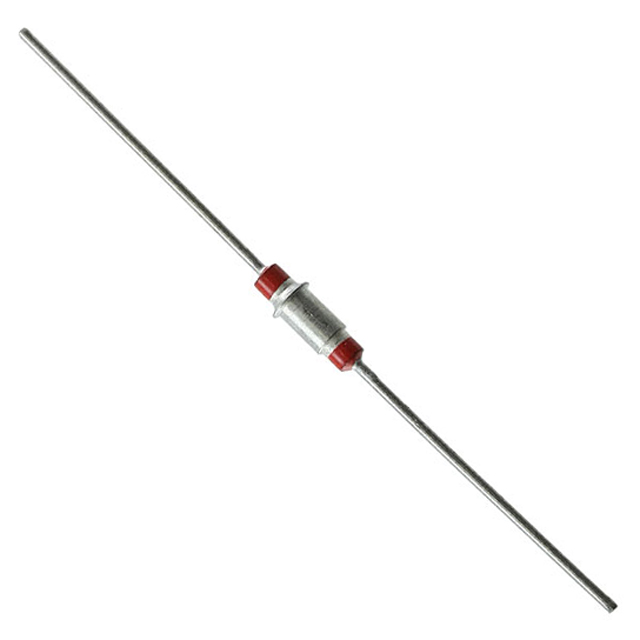

| Part Number | M15733/62-0001 | M15733/62-0002 | M15733/62-0002 | M15733/61-0002 |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | FILTER LC(PI) 1500PF CUSTOM | FILTER LC(PI) 1500PF CUSTOM | FILTER LC(PI) 1500PF CUSTOM | FILTER LC(PI) 1500PF CHASSIS |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
