MAF0603FAL330BT000
lmages are for reference only.MAF0603FAL330BT000
FERRITE BEAD 33 OHM 0201 1LN
Datasheet0201 (0603 Metric)
21,117 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
33 Ohms @ 100 MHz 1 Audio Line Ferrite Bead 0201 (0603 Metric) 200mA 700mOhm
MAF0603FAL330BT000
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | TDK Corporation |
| Series | MAF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Audio Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 33 Ohms @ 100 MHz |
| Current Rating (Max) | 200mA |
| DC Resistance (DCR) (Max) | 700mOhm |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0201 (0603 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.013" (0.33mm) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

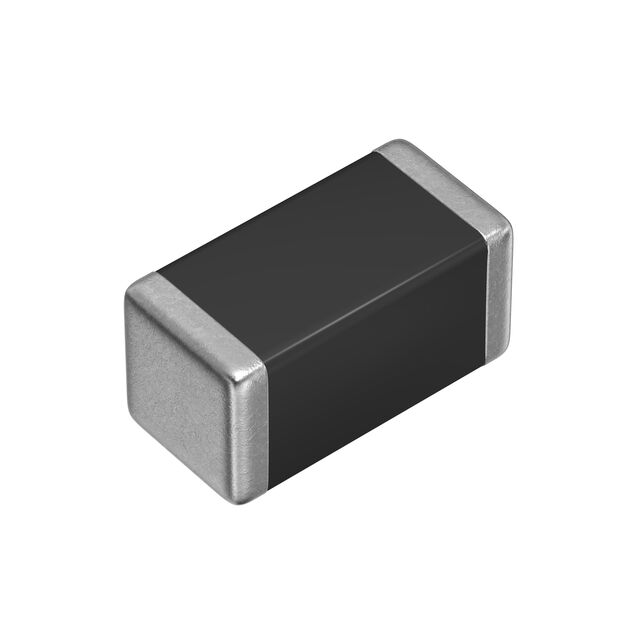

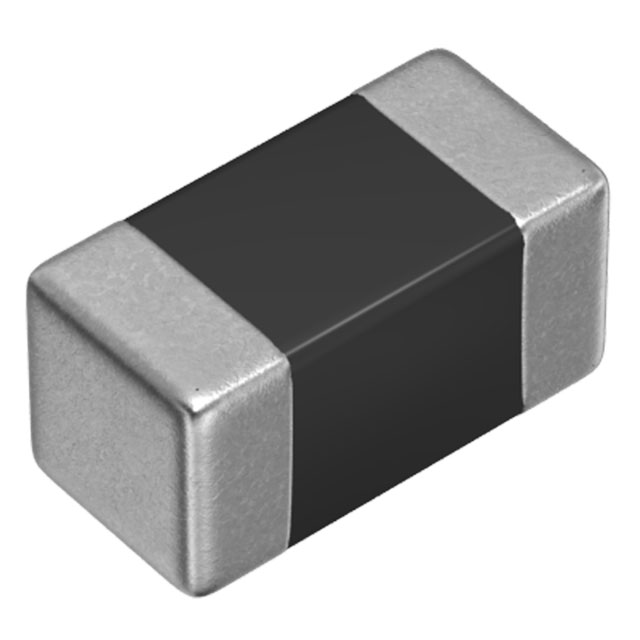

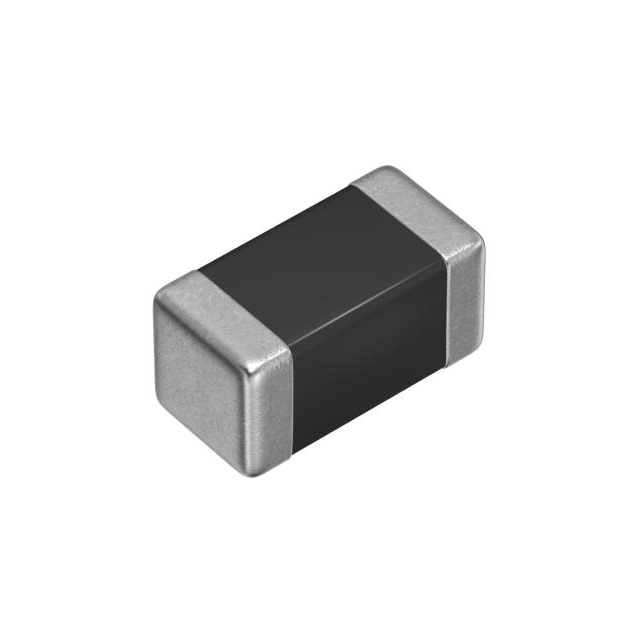

| Part Number | MAF0603FAL470BT000 | MAF0603GWY551AT000 | MAF1005FRQ102AT000 | MAF1005FRQ601AT000 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FERRITE BEAD 47 OHM 0201 1LN | FERRITE BEAD 60 OHM 0201 1LN | NOISE FILTER, 1000, 0.24A | NOISE FILTER, 600, 0.28A |
| Series | MAF | MAF | MAF | MAF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
