MAF1005FRQ102AT000
lmages are for reference only.MAF1005FRQ102AT000
NOISE FILTER, 1000, 0.24A
Datasheet0402 (1005 Metric)
70,823 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 kOhms @ 100 MHz 1 Audio Line Ferrite Bead 0402 (1005 Metric) 240mA 1.65Ohm
MAF1005FRQ102AT000
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | TDK Corporation |
| Series | MAF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Audio Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 1 kOhms @ 100 MHz |
| Current Rating (Max) | 240mA |
| DC Resistance (DCR) (Max) | 1.65Ohm |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0402 (1005 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.022" (0.55mm) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAF1005FRQ601AT000 | MAF1005FRQ801AT000 | MAF1005FSA102AT000 | MAF0603FAL330BT000 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

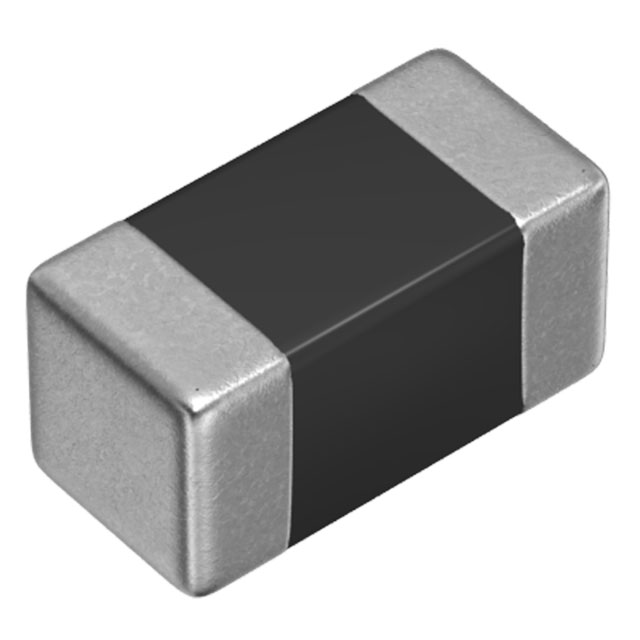

| Description | NOISE FILTER, 600, 0.28A | NOISE FILTER, 800, 0.27A | FERRITE BEAD 1K OHM 0402 1LN | FERRITE BEAD 33 OHM 0201 1LN |
| Series | MAF | MAF | MAF | MAF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
