MAL212517391E3

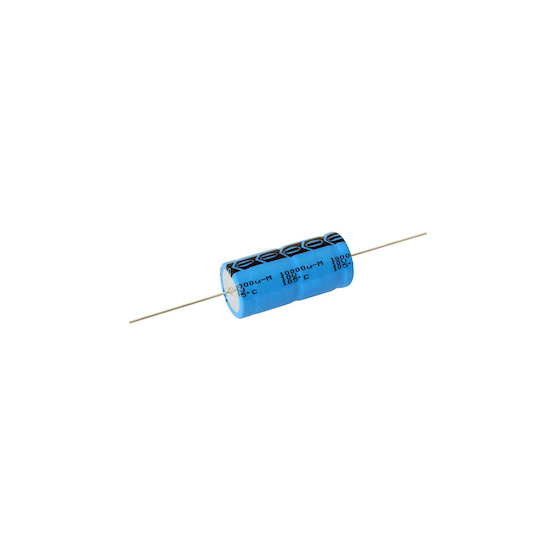

lmages are for reference only.MAL212517391E3
CAP ALUM 390UF 20% 40V AXIAL TH
DatasheetAxial, Can
32,345 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
390 µF 40 V Aluminum Electrolytic Capacitors Axial, Can 340mOhm @ 100Hz 10000 Hrs @ 105°C
MAL212517391E3
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | 125 ALS |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 340mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 400 mA @ 100 Hz |
| Ripple Current @ High Frequency | 560 mA @ 10 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia x 1.181" L (10.00mm x 30.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Base Product Number | - |
| Impedance | 320 mOhms |
| Product Attribute |  |
|
 |
|
| Part Number | MAL212514123E3 | MAL212514123E3 | MAL212514183E3 | MAL212514183E3 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

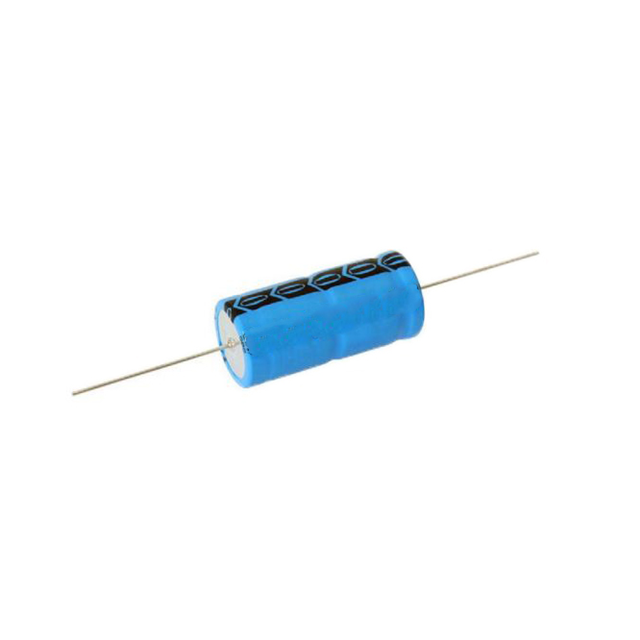

| Description | CAP ALUM 12000UF 20% 10V AXIAL | CAP ALUM 12000UF 20% 10V AXIAL | CAP ALUM 18000UF 20% 10V AXIAL | CAP ALUM 18000UF 20% 10V AXIAL |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Box | Box | Box | Box |
