MAL213828331E3
lmages are for reference only.MAL213828331E3
CAP ALUM 330UF 20% 63V AXIAL TH
DatasheetAxial, Can
71,927 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
330 µF 63 V Aluminum Electrolytic Capacitors Axial, Can 370mOhm @ 100kHz 10000 Hrs @ 105°C
MAL213828331E3
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | 138 AML |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 370mOhm @ 100kHz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 660 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Base Product Number | - |
| Impedance | 220 mOhms |
| Product Attribute |  |
 |
 |
 |

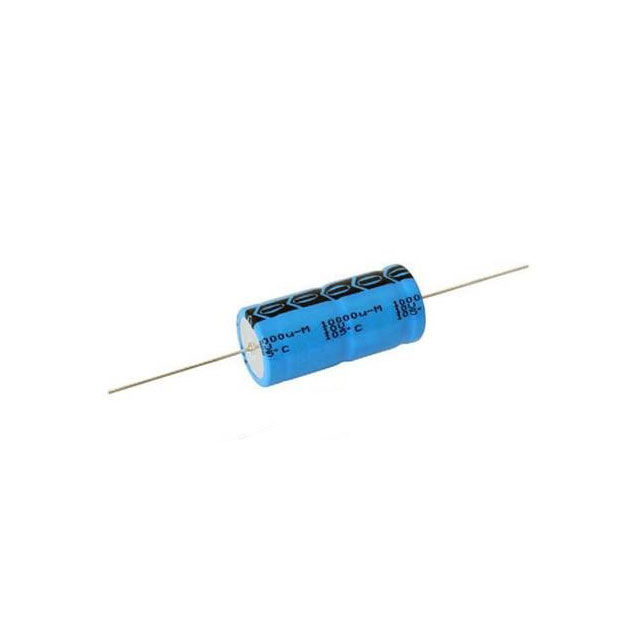

| Part Number | MAL213821101E3 | MAL213821109E3 | MAL213821229E3 | MAL213823101E3 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 100UF 20% 50V AXIAL TH | CAP ALUM 10UF 20% 50V AXIAL TH | CAP ALUM 22UF 20% 50V AXIAL TH | CAP ALUM 100UF 20% 6.3V AXIAL TH |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
