MAL215611223E3

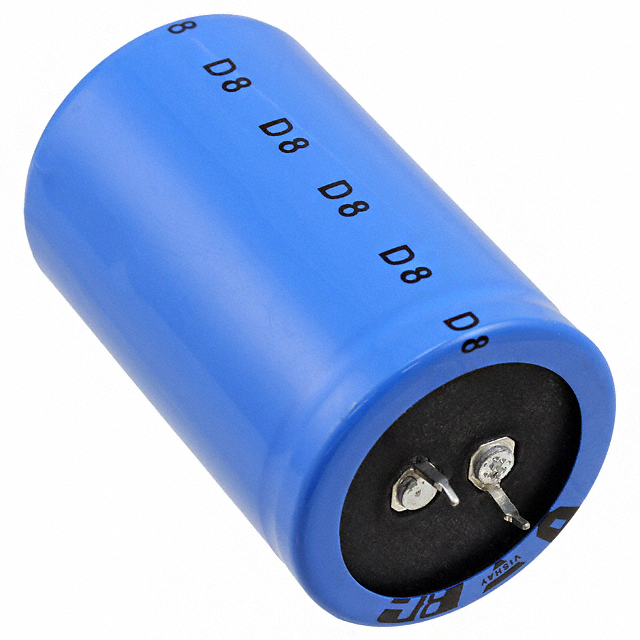

lmages are for reference only.MAL215611223E3
CAP ALUM 22000UF 20% 50V SNAP TH
DatasheetRadial, Can - Snap-In
44,258 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 51mOhm @ 100Hz 5000 Hrs @ 85°C
MAL215611223E3
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | 156 PUM-SI |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 51mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.97 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.441" (62.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | 46 mOhms |
| Product Attribute |  |
|
 |
|
| Part Number | MAL215611222E3 | MAL215611222E3 | MAL215611103E3 | MAL215611123E3 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 2200UF 20% 50V SNAP TH | CAP ALUM 2200UF 20% 50V SNAP TH | CAP ALUM 10000UF 20% 50V SNAP TH | CAP ALUM 12000UF 20% 50V SNAP TH |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
