MAL218097504E3

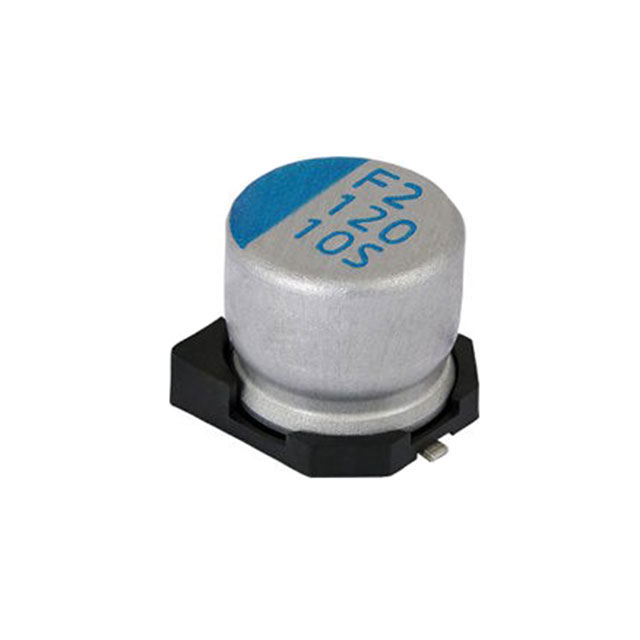

lmages are for reference only.MAL218097504E3
CAP ALUM POLY 100UF 20% 16V SMD
DatasheetRadial, Can - SMD
23,648 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
MAL218097504E3
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | 180 CPS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.49 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.232" (5.90mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | - |
| Impedance | 24 mOhms |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAL218097501E3 | MAL218097502E3 | MAL218097503E3 | MAL218097505E3 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 39UF 20% 16V SMD | CAP ALUM POLY 39UF 20% 16V SMD | CAP ALUM POLY 68UF 20% 16V SMD | CAP ALUM POLY 150UF 20% 16V SMD |
| Series | 180 CPS | 180 CPS | 180 CPS | 180 CPS |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
