MAL218497419E3

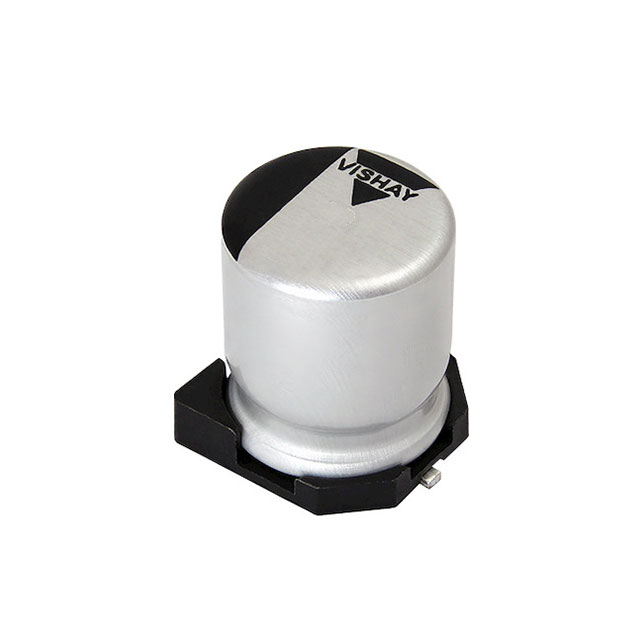

lmages are for reference only.MAL218497419E3
CAP ALUM POLY 1500UF 20% 10V SMD
DatasheetRadial, Can - SMD
72,695 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1500 µF 10 V Aluminum - Polymer Capacitors Radial, Can - SMD 9mOhm 2000 Hrs @ 105°C
MAL218497419E3
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | 184 CPNS |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 9mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 275 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.5 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAL218497411E3 | MAL218497412E3 | MAL218497413E3 | MAL218497414E3 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 220UF 20% 10V SMD | CAP ALUM POLY 220UF 20% 10V SMD | CAP ALUM POLY 330UF 20% 10V SMD | CAP ALUM POLY 470UF 20% 10V SMD |
| Series | 184 CPNS | 184 CPNS | 184 CPNS | 184 CPNS |
| Packaging | Box | Box | Box | Box |
