MAX25601AATJ/VY+

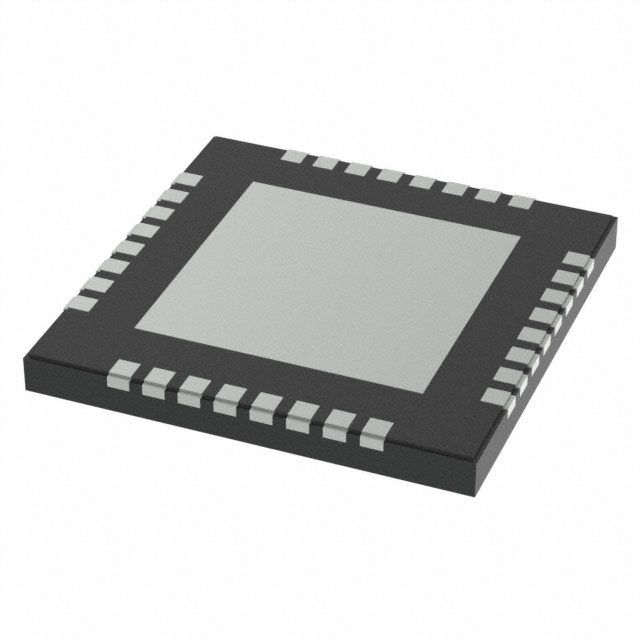

lmages are for reference only.MAX25601AATJ/VY+
IC LED DRIVER CTRLR PWM 32TQFN
Datasheet32-WFQFN Exposed Pad
50,246 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 4 Output DC DC Controller Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 32-TQFN-EP (5x5)
MAX25601AATJ/VY+
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Type | DC DC Controller |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 4 |
| Voltage - Supply (Min) | 4.5V |
| Voltage - Supply (Max) | 40V |
| Voltage - Output | 5V |
| Current - Output / Channel | - |
| Frequency | 200kHz ~ 2.2MHz |
| Dimming | Analog, PWM |
| Applications | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN-EP (5x5) |
| Base Product Number | MAX25601 |
| Grade | Automotive |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAX25601AATJ/VY+T | MAX25600ATI/VY+ | MAX25600ATI/VY+T | MAX25600AUI/V+ |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC LED DRIVER CTRLR PWM 32TQFN | IC LED DRIVER CTRLR PWM 28TQFN | IC LED DRIVER CTRLR PWM 28TQFN | IC LED DRIVER CTRLR PWM 28TSSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tray | Tape & Reel (TR) | Tube |
