MC13820FCR2
lmages are for reference only.MC13820FCR2
IC AMP CELL 800MHZ-2.5GHZ 12QFN
Datasheet12-VFQFN Exposed Pad
90,831 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC Cellular, ISM, PCS, GPS 800MHz ~ 2.5GHz 12-QFN (3x3)
MC13820FCR2
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | Freescale Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Frequency | 800MHz ~ 2.5GHz |
| P1dB | -10dBm |
| Gain | 18dB |
| Noise Figure | 1.25dB |
| RF Type | Cellular, ISM, PCS, GPS |
| Voltage - Supply | 2.7V ~ 3V |
| Current - Supply | 2.8mA |
| Test Frequency | 1.575GHz |
| Mounting Type | Surface Mount |
| Package / Case | 12-VFQFN Exposed Pad |
| Supplier Device Package | 12-QFN (3x3) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

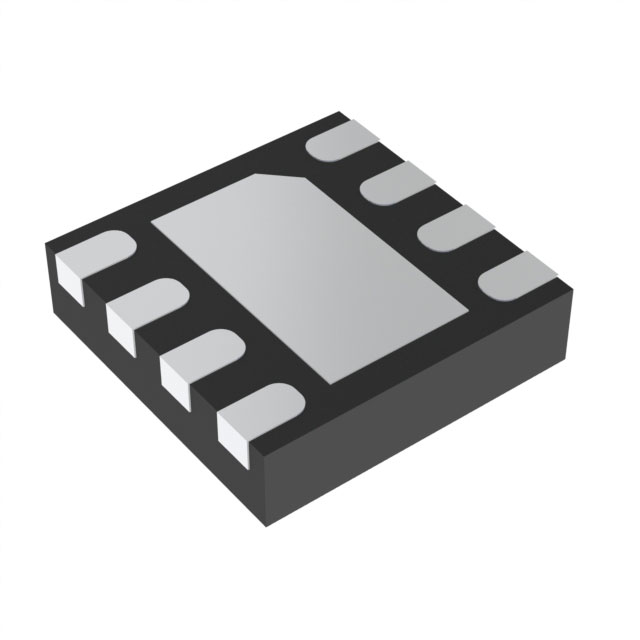

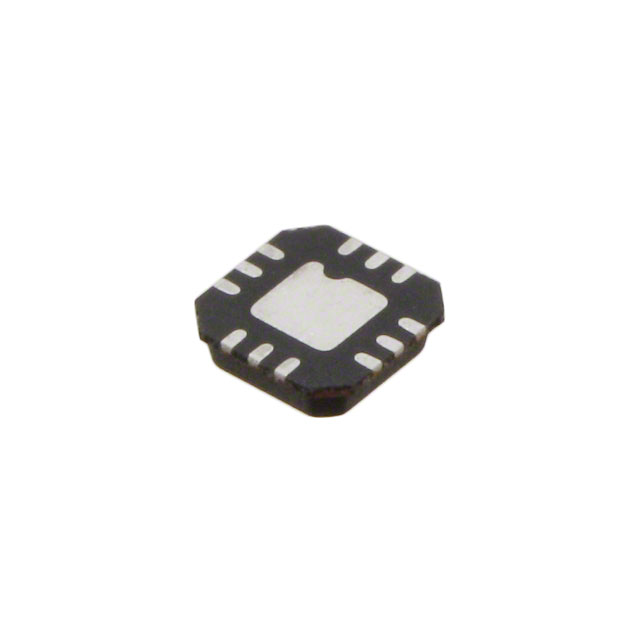

| Part Number | MC13821FCR2 | MC13850EPR2 | MC13851EPR2 | MC13851EPR2 |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | Not applicable |
| Description | IC RF AMP ISM 1GHZ-2.4GHZ 12QFN | IC AMP GPS 400MHZ-2.5GHZ 8MLPD | IC RF AMP GPS 1GHZ-2.5GHZ 8MLPD | IC RF AMP GPS 1GHZ-2.5GHZ 8MLPD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
