MC13851EPR2

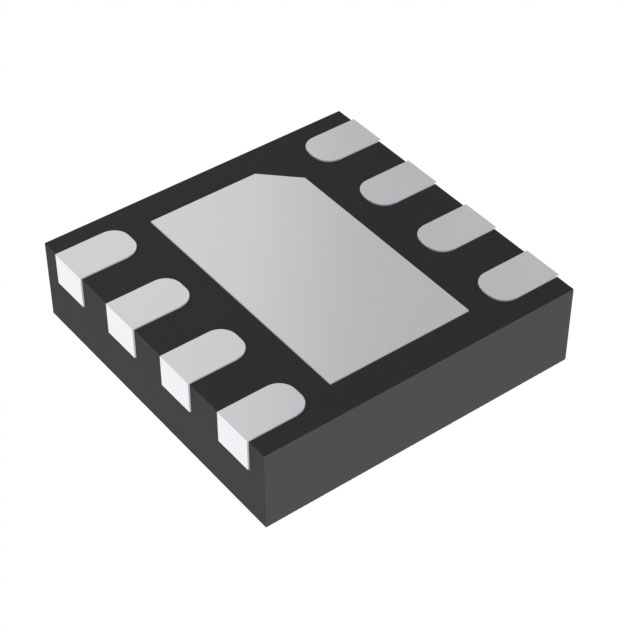

lmages are for reference only.MC13851EPR2
IC RF AMP GPS 1GHZ-2.5GHZ 8MLPD
Datasheet8-UFDFN Exposed Pad
81,178 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC General Purpose 1GHz ~ 2.5GHz 8-MLPD (2x2)
MC13851EPR2
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | Freescale Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Frequency | 1GHz ~ 2.5GHz |
| P1dB | 8dBm |
| Gain | 16.4dB |
| Noise Figure | 1.1dB |
| RF Type | General Purpose |
| Voltage - Supply | 2.3V ~ 3V |
| Current - Supply | 4.8mA |
| Test Frequency | 2.14GHz |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFDFN Exposed Pad |
| Supplier Device Package | 8-MLPD (2x2) |
| Base Product Number | MC138 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

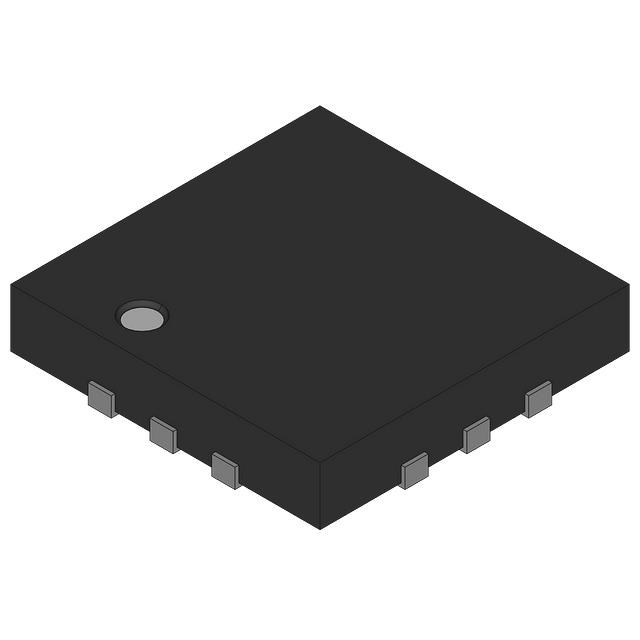

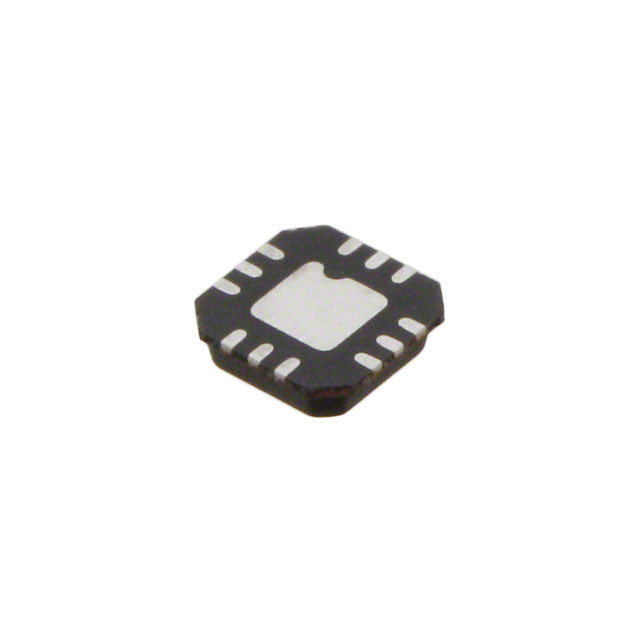

| Part Number | MC13851EPR2 | MC13820FCR2 | MC13821FCR2 | MC13850EPR2 |
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF AMP GPS 1GHZ-2.5GHZ 8MLPD | IC AMP CELL 800MHZ-2.5GHZ 12QFN | IC RF AMP ISM 1GHZ-2.4GHZ 12QFN | IC AMP GPS 400MHZ-2.5GHZ 8MLPD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
