Product CatalogPart Number
MCAC125N04YHE3-TP
Manufacturer
Micro Commercial CoDescription
MOSFET N-CH 40 125A DFN5060
Datasheet
DatasheetPackage
8-PowerTDFN
In Stock
24,153 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MCAC125N04YHE3-TP
MCAC125N04YHE3-TP

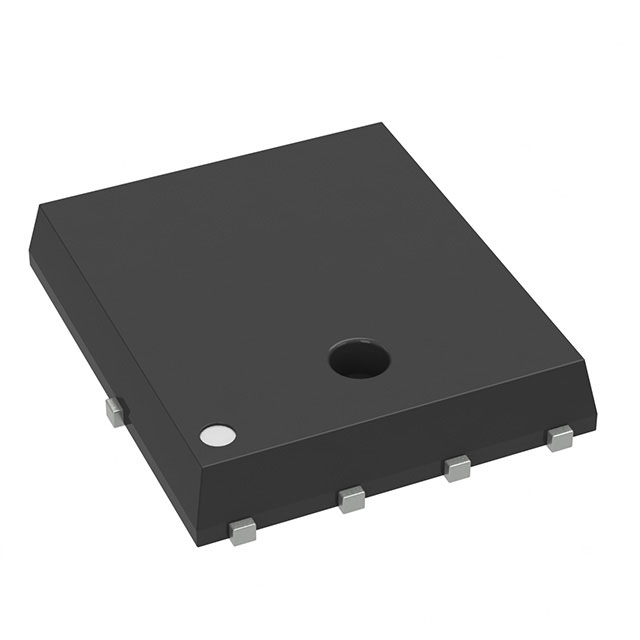

lmages are for reference only.Payment Methods
Delivery Services
N-Channel 40 V 125A (Tc) 100W (Tj) Surface Mount DFN5060
Quick Inquiry
MCAC125N04YHE3-TP
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 125A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.6mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3555 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 100W (Tj) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN5060 |
| Package / Case | 8-PowerTDFN |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 42 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | MCH3377-TL-W | MCU20N10-TP | MCH3478-TL-W-Z | MCH3406-TL-E |
| Manufacturer | onsemi | Micro Commercial Co | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET P-CH 20V 3A 3MCPH | MOSFET N-CH 100V DPAK | MOSFET P-CH 30V 1.6A SC-70FL | N-CHANNEL POWER MOSFET |
| Series | - | - | * | * |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
