MINISMDC110-2

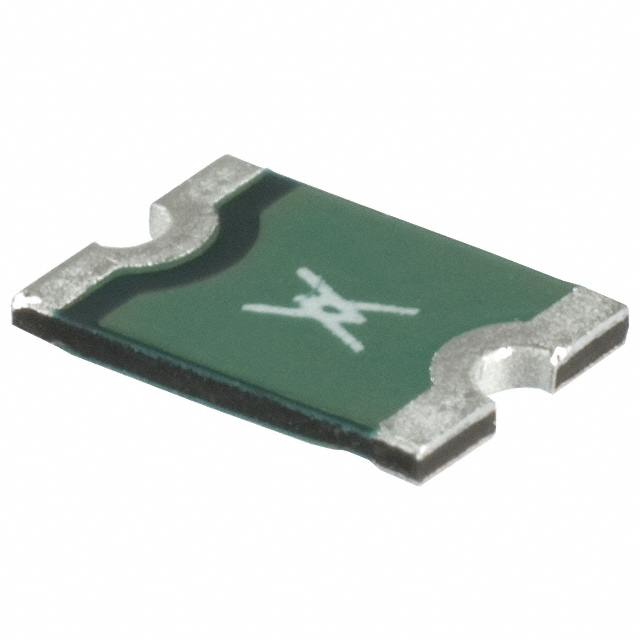

lmages are for reference only.MINISMDC110-2
PTC RESET FUSE 8V 1.1A 1812
Datasheet1812 (4532 Metric), Concave
42,765 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 8V 1.1 A Ih Surface Mount 1812 (4532 Metric), Concave
MINISMDC110-2
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | PolySwitch®, miniSMD |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | RoHS non-compliant |
| Type | Polymeric |
| Voltage - Max | 8V |
| Current - Hold (Ih) (Max) | 1.1 A |
| Current - Trip (It) | 2.2 A |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.024" (0.62mm) |
| Lead Spacing | - |
| Approval Agency | CSA, TUV, UL |
| Time to Trip | 300 ms |
| Resistance - Initial (Ri) (Min) | 40 mOhms |
| Resistance - Post Trip (R1) (Max) | 210 mOhms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MINISMDC110F-2 | MINISMDC110F/16-2 | MINISMDC110F/24-2 | MINISMD050-2 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | PTC RESET FUSE 8V 1.1A 1812 | PTC RESET FUSE 16V 1.1A 1812 | PTC RESET FUSE 24V 1.1A 1812 | PTC RESET FUSE 500MA 1812 |
| Series | PolySwitch®, miniSMD | PolySwitch®, miniSMD | PolySwitch®, miniSMD | PolySwitch® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT) |
