MLZ2012N4R7LT000

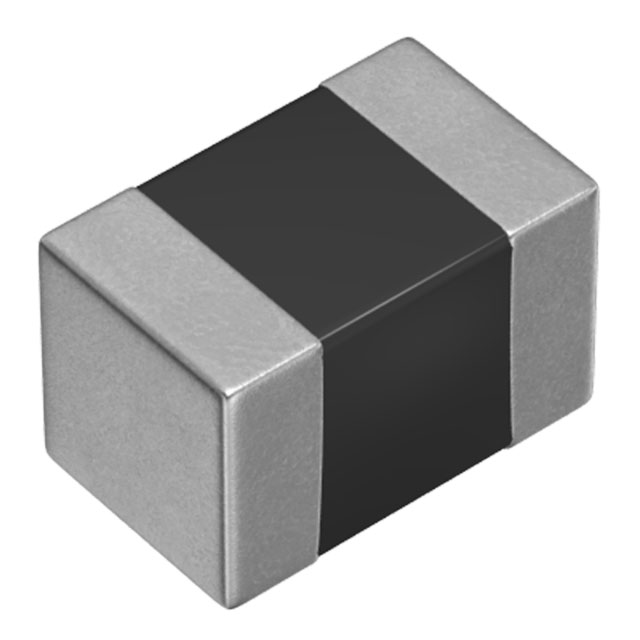

lmages are for reference only.MLZ2012N4R7LT000
FIXED IND 4.7UH 600MA 180MOHM SM
Datasheet0805 (2012 Metric)
84,165 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 µH Shielded Multilayer Inductor 600 mA 180mOhm 0805 (2012 Metric)
MLZ2012N4R7LT000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | MLZ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | 130mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 180mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 70MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 2 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MLZ2012N4R7LTD25 | MLZ2012A1R0MT000 | MLZ2012A1R0WT000 | MLZ2012A1R0WTD25 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 4.7UH 600MA 180MOHM SM | FIXED IND 1UH 900MA 100 MOHM SMD | FIXED IND 1UH 900MA 100 MOHM SMD | FIXED IND 1UH 900MA 100 MOHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
