Product CatalogPart Number
MMIX1X200N60B3H1
Manufacturer
IXYSDescription

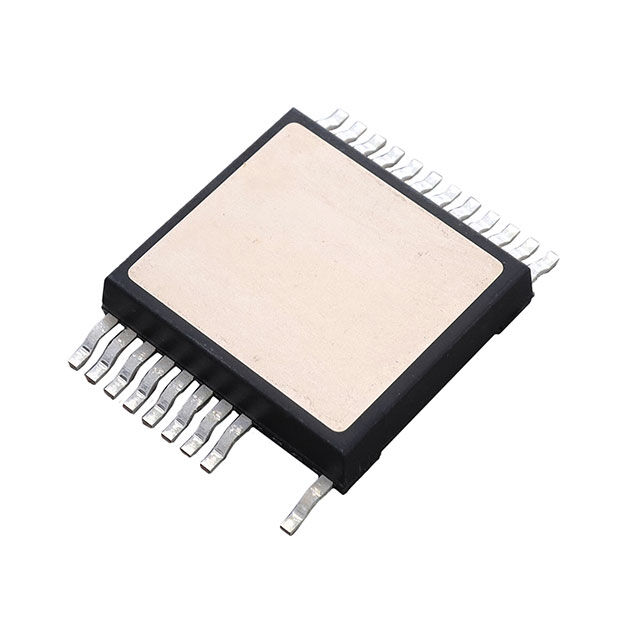

IGBT 600V 175A 520W SMPD
Datasheet
DatasheetPackage
24-PowerSMD, 21 Leads
In Stock
13,517 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MMIX1X200N60B3H1
MMIX1X200N60B3H1
lmages are for reference only.Payment Methods
Delivery Services
IGBT 600 V 175 A 520 W Surface Mount 24-SMPD
Quick Inquiry
MMIX1X200N60B3H1
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | IXYS |
| Series | GenX3™, XPT™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 175 A |
| Current - Collector Pulsed (Icm) | 1000 A |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 100A |
| Power - Max | 520 W |
| Switching Energy | 2.85mJ (on), 2.9mJ (off) |
| Input Type | Standard |
| Gate Charge | 315 nC |
| Td (on/off) @ 25°C | 48ns/160ns |
| Test Condition | 360V, 100A, 1Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-PowerSMD, 21 Leads |
| Supplier Device Package | 24-SMPD |
| Reverse Recovery Time (trr) | 100 ns |
| Base Product Number | MMIX1X200 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

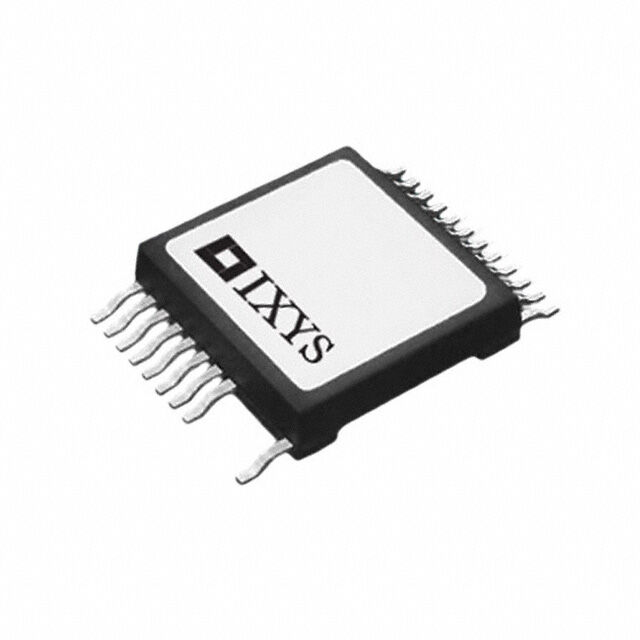

| Part Number | MMIX1X100N60B3H1 | MMIX1X200N60B3 | MMIX1X340N65B4 | MIW50N65F-BP |
| Manufacturer | IXYS | IXYS | IXYS | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT 600V 145A 400W SMPD | IGBT 600V 223A 625W SMPD | IGBT 650V 450A 24-SMPD | IGBT 650V 40A TO-247 |
| Series | GenX3™, XPT™ | GenX3™, XPT™ | XPT™, GenX4™ | - |
| Packaging | Tube | Tube | Tube | Tube |
