Product CatalogPart Number
MPI-822H-B
Manufacturer
Magic PowerDescription
ATX PSU, 170W convection, 220W w
Datasheet
DatasheetPackage
-
In Stock
40,790 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MPI-822H-B
MPI-822H-B
lmages are for reference only.Payment Methods
Delivery Services
Open Frame AC DC Converters 4 Output 5V 12V -12V 3.3V 90 ~ 264 VAC Input
Quick Inquiry
MPI-822H-B
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | Magic Power |
| Series | MPI-822H-B(220W) |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Open Frame |
| Number of Outputs | 4 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | 3.3V |
| Voltage - Output 6 | - |
| Current - Output 1 | 1 A |
| Current - Output 2 | 12 A |
| Current - Output 3 | 12 A |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 83% |
| Operating Temperature | -10°C ~ 80°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.80" L x 3.82" W x 1.59" H (198.0mm x 97.0mm x 40.5mm) |
| Approval Agency | CE, cUL, UL |
| Minimum Load Required | No |
| Voltage - Output 5 | - |
| Current - Output 4 | 14 A |
| Current - Output 5 | - |
| Power (Watts) | 146W (266W Forced Air) |
| Features | Universal Input |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

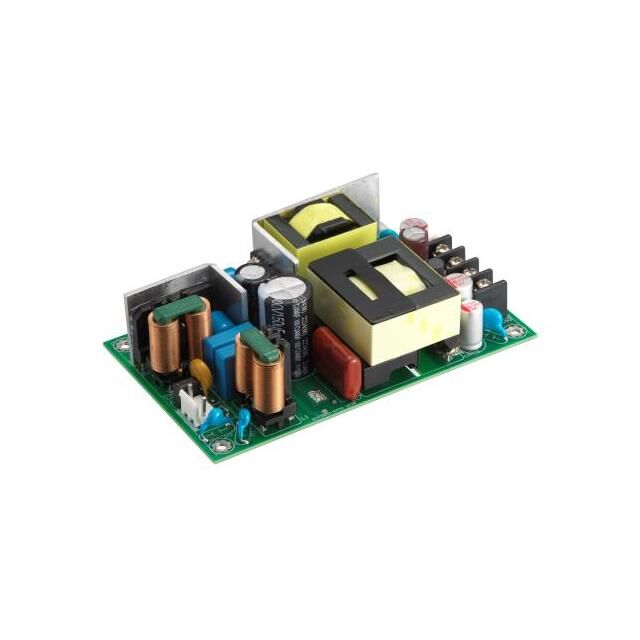

| Part Number | MPI-806H-B | MPI-810H | MPI-G403 | MPI-G503 |
| Manufacturer | Magic Power | Magic Power | Magic Power | Magic Power |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | ATX PSU, 60W convection, 80W wit | ATX PSU, 85W convection, 120W wi | 12V 20.83A 250W convection, 400W | 12V/25A 300W convection, 500W wi |
| Series | MPI-806H-B (80W) | MPI-810H (120W) | MPI-G400 (400W) | MPI-G503 (500W) |
| Packaging | Bulk | Bulk | Bulk | Bulk |
