MPS0117V2NBC

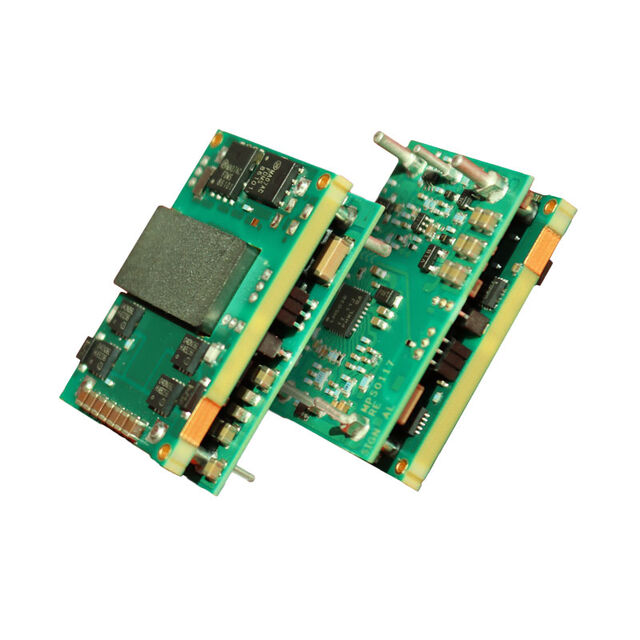

lmages are for reference only.MPS0117V2NBC
DC DC CONV 36-75VIN 12V 17A 204W
DatasheetSixteenth Brick
66,250 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 17A 36V - 75V Input
MPS0117V2NBC
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 17A |
| Power (Watts) | 204 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Baseplate, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 94.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Sixteenth Brick |
| Size / Dimension | 1.30" L x 0.90" W x 0.51" H (33.0mm x 22.9mm x 12.9mm) |
| Supplier Device Package | Sixteenth Brick |
| Control Features | Enable, Active Low |
| Approval Agency | cCSAus, CE, UKCA |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
 |
|
| Part Number | MPS0117V2NC | MP028F036M12AL | MP028T036M12AL | MP2496GR-P |
| Manufacturer | Murata Power Solutions Inc. | Vicor Corporation | Vicor Corporation | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONV 36-75VIN 12V 17A 180W | DC DC CONVERTER 36V 120W | DC DC CONVERTER 36V 120W | 2.5A, 36V, FREQUENCY SELECTABLE |
| Series | Murata Power Solutions Inc. | Vicor Corporation | Vicor Corporation | Monolithic Power Systems Inc. |
| Packaging | Tray | Tray | Tray | Tape & Reel (TR) |
