Product CatalogPart Number
MS22BSG30
Manufacturer
NKK SwitchesDescription
SWITCH SLIDE DPDT 0.4VA 28V
Datasheet
DatasheetPackage
-
In Stock
52,343 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MS22BSG30
MS22BSG30
lmages are for reference only.Payment Methods
Delivery Services
Slide Switch DPDT Through Hole, Right Angle
Quick Inquiry
MS22BSG30
Specifications
| Category | Switches - Slide Switches - |
| Manufacturer | NKK Switches |
| Series | MS |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Circuit | DPDT |
| Contact Timing | Non-Shorting (BBM) |
| Switch Function | On-On |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
| Actuator Type | Standard |
| Actuator Length | 5.10mm |
| Contact Material | Copper |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Features | Epoxy Sealed Terminals |
| Operating Temperature | -30°C ~ 85°C |
| Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Switch Travel | 2.20mm |
| Mechanical Life | 100,000 Cycles |
| Electrical Life | 50,000 Cycles |
| Operating Force | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|

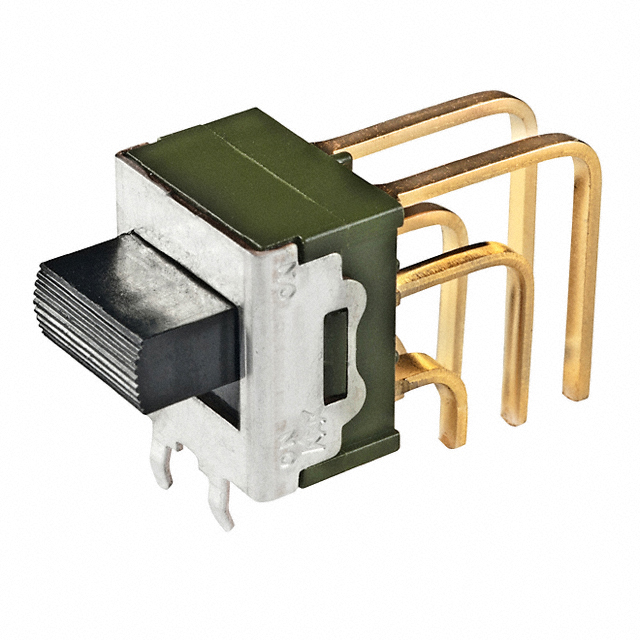

| Part Number | MS22BSG13 | MS22BSG40 | MS22BSW30 | MS20AFG01 |
| Manufacturer | NKK Switches | NKK Switches | NKK Switches | NKK Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH SLIDE DPDT 0.4VA 28V | SWITCH SLIDE DPDT 0.4VA 28V | SWITCH SLIDE DPDT 6A 125V | SWITCH SLIDE SP3T 0.4VA 28V |
| Series | MS | MS | MS | MS |
| Packaging | Bulk | Tray |
