MUSBRM1C130
lmages are for reference only.MUSBRM1C130
CONN RCPT TYPEC 24POS PCB R/A
Datasheet-
67,435 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB-C (USB TYPE-C) Receptacle Connector 24 Position Panel Mount, Through Hole, Right Angle
MUSBRM1C130
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | MUSBR |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | USB-C (USB TYPE-C) |
| Number of Contacts | 24 |
| Gender | Receptacle |
| Specifications | - |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Flange, Horizontal |
| Termination | Solder |
| Features | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 105°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 0.25A, 1.25A, 5A |
| Voltage - Rated | - |
| Mating Cycles | - |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | MUSBR |
| Product Attribute |  |
 |
 |
 |

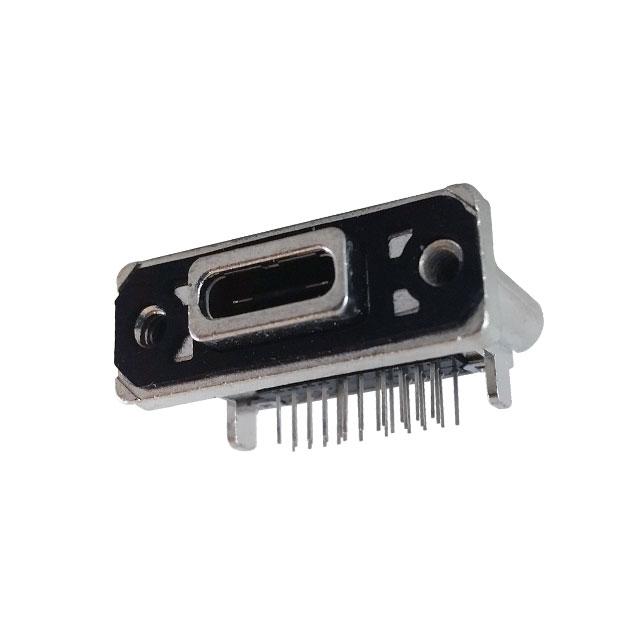

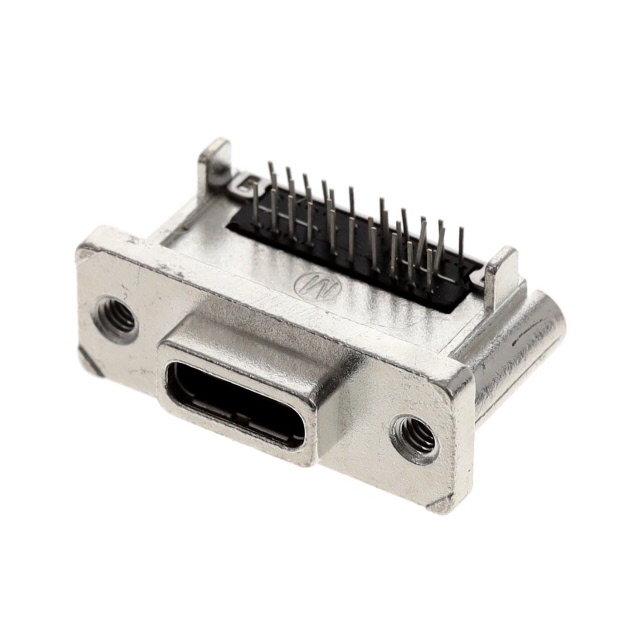

| Part Number | MUSBRM1C1M0 | MUSBRM1C1M02 | MUSBRM1C1M06 | MUSBR-05-F-O-A-SM-A |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Samtec Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | CONN RCPT TYPEC 24POS PCB R/A | CONN RCPT TYPEC 24POS PCB R/A | USB C R/A PCB RUGGED | MINI UNIVERSAL SERIAL BUS |
| Series | MUSBR | * | * | MUSBR |
| Packaging | Box | Bulk | Box | Tray |
