Product CatalogPart Number
MW2S101MNN1630A4E
Manufacturer
Chinsan (Elite)Description
CAP ALUM 100UF 20% 420V RADIAL
Datasheet
DatasheetPackage
Radial, Can
In Stock
74,001 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MW2S101MNN1630A4E
MW2S101MNN1630A4E

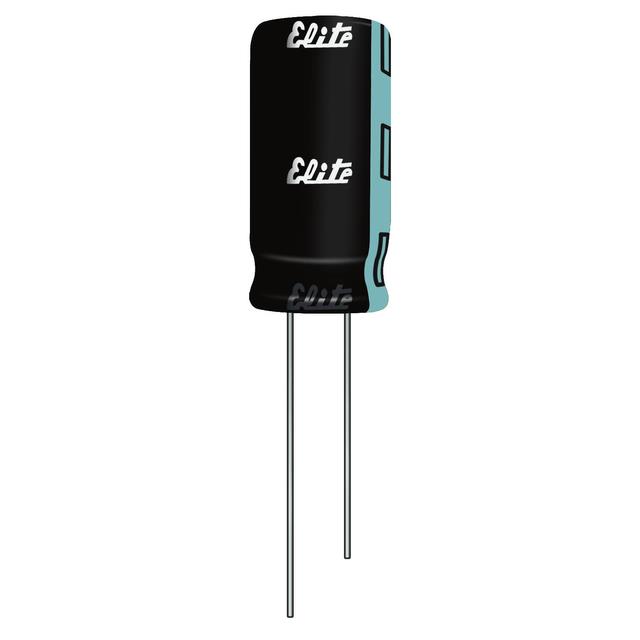

lmages are for reference only.Payment Methods
Delivery Services
100 µF 420 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Quick Inquiry
MW2S101MNN1630A4E
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | MW |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 904 mA @ 100 kHz |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | 400 mOhms |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | MW2E220MNN1016R | MW2E220MNN1016R | MW2G100MNN0816 | MW2G121MNN1635 |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 22UF 20% 250V RADIAL TH | CAP ALUM 22UF 20% 250V RADIAL TH | CAP ALUM 10UF 20% 400V RADIAL TH | CAP ALUM 120UF 20% 400V RADIAL |
| Series | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| Packaging | Bulk | Bulk | Bulk | Bulk |
