MXLPLAD36KP14CAE3/TR

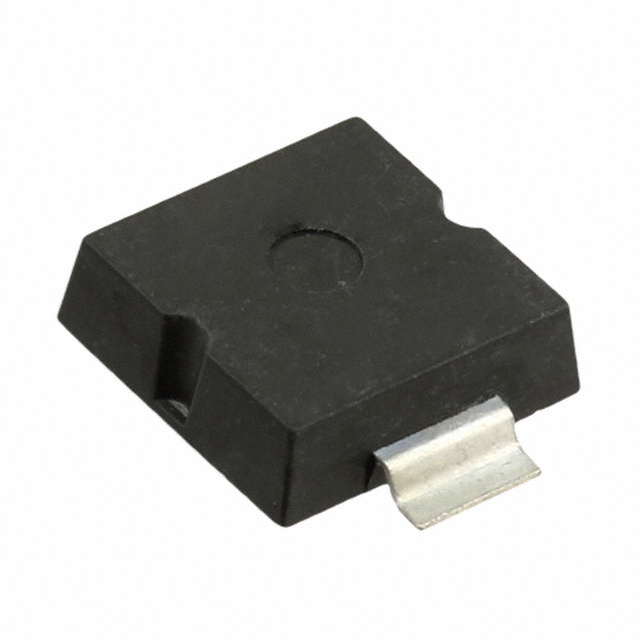

lmages are for reference only.MXLPLAD36KP14CAE3/TR
SURFACE MOUNT 36,000 WATT, TVS,
DatasheetNonstandard SMD
49,222 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
24V Clamp 1500A (1.5kA) Ipp Tvs Diode Surface Mount PLAD
MXLPLAD36KP14CAE3/TR
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 14V |
| Voltage - Breakdown (Min) | 15.6V |
| Voltage - Clamping (Max) @ Ipp | 24V |
| Current - Peak Pulse (10/1000µs) | 1500A (1.5kA) |
| Power - Peak Pulse | 36000W (36kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
| Supplier Device Package | PLAD |
| Base Product Number | PLAD36 |
| Unidirectional Channels | - |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
| Product Attribute |  |
|
 |
 |
| Part Number | MXLPLAD36KP15A | MXLPLAD36KP26AE3 | MXLPLAD36KP30CA | MXLPLAD36KP30CAE3 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | TVS DIODE 15VWM 25.8VC PLAD | TVS DIODE 26VWM 43VC PLAD | TVS DIODE 30VWM 48.8VC PLAD | TVS DIODE 30VWM 48.8VC PLAD |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Bulk | Bulk | Bulk |
