MXLPLAD36KP15A

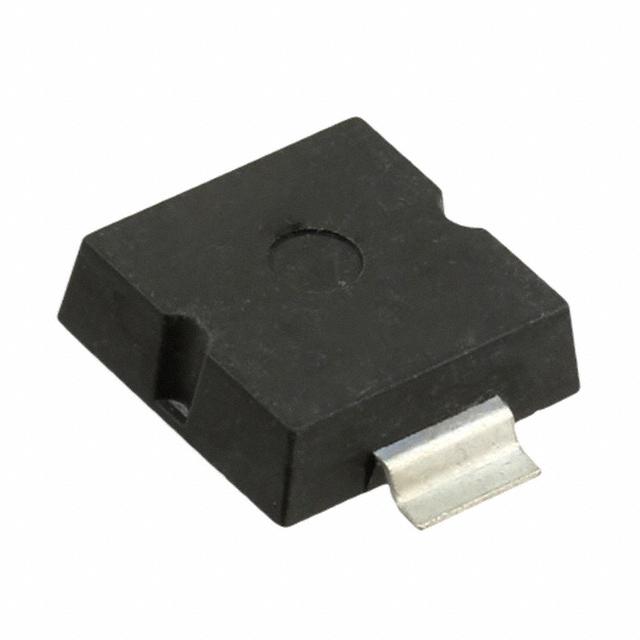

lmages are for reference only.MXLPLAD36KP15A
TVS DIODE 15VWM 25.8VC PLAD
DatasheetNonstandard SMD
24,073 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
25.8V Clamp 1396A (1.396kA) Ipp Tvs Diode Surface Mount PLAD
MXLPLAD36KP15A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 15V |
| Voltage - Breakdown (Min) | 16.7V |
| Voltage - Clamping (Max) @ Ipp | 25.8V |
| Current - Peak Pulse (10/1000µs) | 1396A (1.396kA) |
| Power - Peak Pulse | 36000W (36kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
| Supplier Device Package | PLAD |
| Base Product Number | PLAD36 |
| Unidirectional Channels | 1 |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
| Product Attribute |  |
|
 |
 |
| Part Number | MXLPLAD36KP14CAE3/TR | MXLPLAD36KP26AE3 | MXLPLAD36KP30CA | MXLPLAD36KP30CAE3 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | |
| Description | SURFACE MOUNT 36,000 WATT, TVS, | TVS DIODE 26VWM 43VC PLAD | TVS DIODE 30VWM 48.8VC PLAD | TVS DIODE 30VWM 48.8VC PLAD |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Bulk | Bulk | Bulk |
