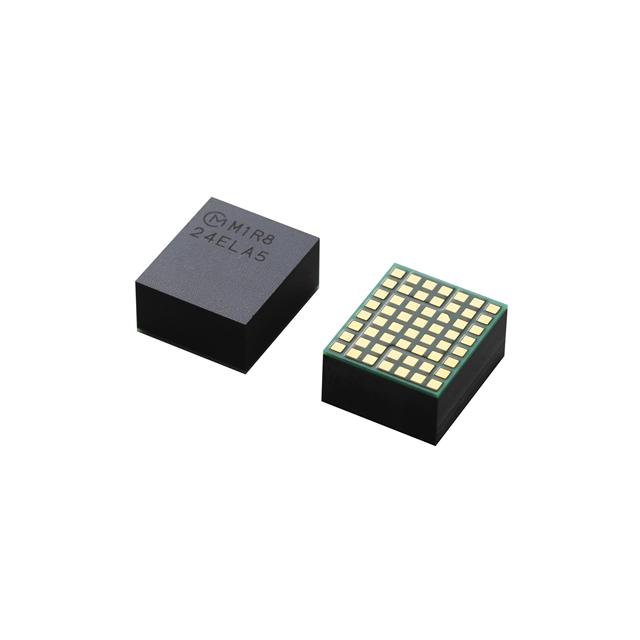

MYMGM1R824ELA5RAD
lmages are for reference only.MYMGM1R824ELA5RAD
DC DC CONVERTER 0.7-1.8V 43W
Datasheet56-SMD Module
45,268 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 1.8V 24A 7.5V - 15V Input
MYMGM1R824ELA5RAD
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | MonoBK™ MYMGM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 7.5V |
| Voltage - Input (Max) | 15V |
| Voltage - Output 1 | 0.7 ~ 1.8V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 24A |
| Power (Watts) | 43 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, PMBus™, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 94% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 56-SMD Module |
| Size / Dimension | 0.41" L x 0.35" W x 0.20" H (10.5mm x 9.0mm x 5.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | MYMGM1R8 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |

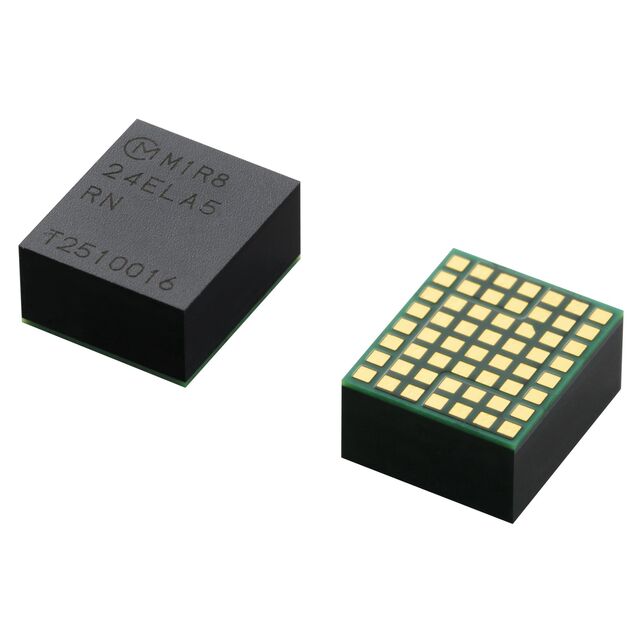

| Part Number | MYMGM1R824ELA5RA | MYMGM1R824ELA5RA-EVM | MYMGM1R824ELA5RN | MYMGM1R824ELA5RND |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 0.7-1.8V 43W | POWERM | POWERM | DC/DC CONV 7.5-15V/0.7-1.8V 24A |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Box | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
