MYMGM1R824ELA5RPD

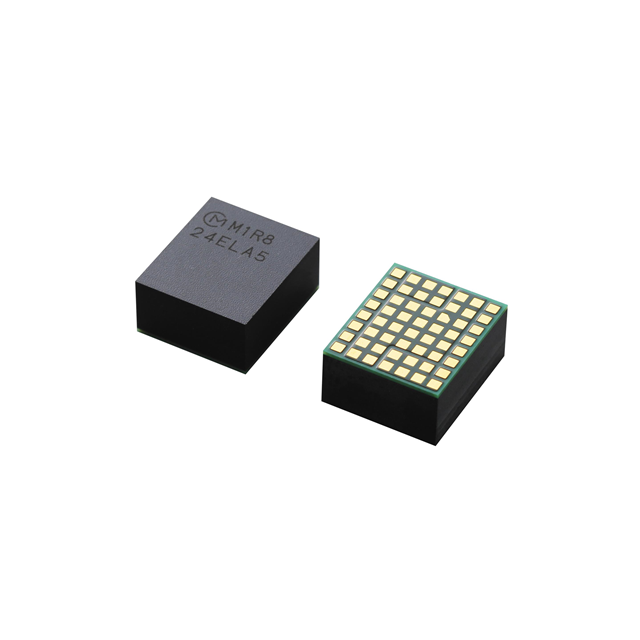

lmages are for reference only.MYMGM1R824ELA5RPD
40A WITH 2 MODULES BY MULTI PHAS
Datasheet56-SMD Module
23,932 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 1.2V 40A 7.5V - 15V Input
MYMGM1R824ELA5RPD
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | MonoBK™ MYMGM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 7.5V |
| Voltage - Input (Max) | 15V |
| Voltage - Output 1 | 0.7 ~ 1.2V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 40A |
| Power (Watts) | 48 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, I2C Interface, Load Sharing, PMBus™, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 86.1% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 56-SMD Module |
| Size / Dimension | 0.41" L x 0.35" W x 0.20" H (10.5mm x 9.0mm x 5.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
|
 |
 |
| Part Number | MYMGM1R824ELA5RP | MYMGM1R824ELA5RPD | MYMGM1R824ELA5RA | MYMGM1R824ELA5RA-EVM |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 40A WITH 2 MODULES BY MULTI PHAS | 40A WITH 2 MODULES BY MULTI PHAS | DC DC CONVERTER 0.7-1.8V 43W | POWERM |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Box |
