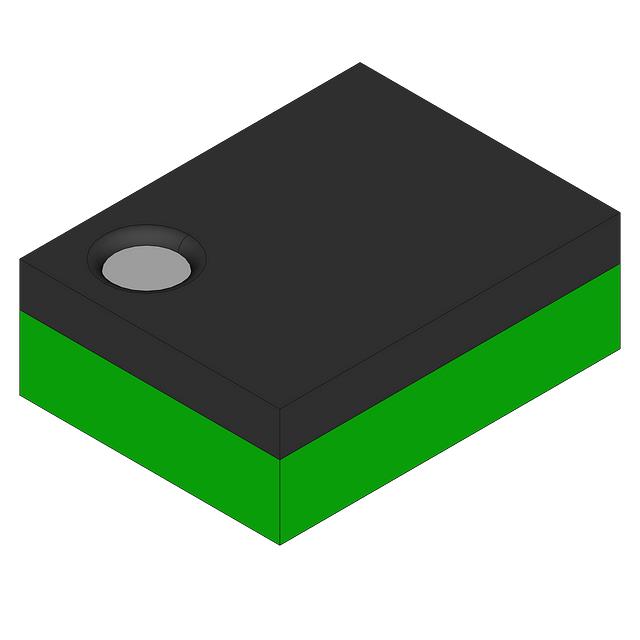

lmages are for reference only.NX5P1100UKZ
NX5P1100UK - Logic controlled hi
Datasheet12-UFBGA, WLCSP
22,139 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 N-Channel 1A 12-WLCSP (1.66x1.36)
NX5P1100UKZ
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | NXP Semiconductors |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1A |
| Rds On (Typ) | 60mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 12-WLCSP (1.66x1.36) |
| Package / Case | 12-UFBGA, WLCSP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | NX5P1000UKZ | NX5P1000UKZ | NX5P1100UKZ | NID9N05ACLT4G |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC PWR SWITCH N-CHAN 1:1 12WLCSP | NX5P1000 - LOGIC CONTROLLED HIGH | IC PWR SWITCH 1:1 12WLCSP | IC PWR DRIVER N-CHANNEL 1:1 DPAK |
| Series | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | onsemi |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
