Product CatalogPart Number
NXPSC066506Q
Manufacturer
WeEn SemiconductorsDescription
DIODE SIL CARB 650V 6A TO220AC
Datasheet
DatasheetPackage
TO-220-2
In Stock
73,216 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
NXPSC066506Q
NXPSC066506Q
lmages are for reference only.Payment Methods
Delivery Services
Diode 650 V 6A Through Hole TO-220AC
Quick Inquiry
NXPSC066506Q
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | WeEn Semiconductors |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 6A |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 6 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 200 µA @ 650 V |
| Capacitance @ Vr, F | 190pF @ 1V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | 175°C (Max) |
| Base Product Number | NXPSC |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | NXPSC06650B6J | NXPSC06650D6J | NXPSC06650Q | NXPSC06650X6Q |
| Manufacturer | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors |
| RoHS Status | RoHS Compliant | |||
| Description | DIODE SIL CARBIDE 650V 6A D2PAK | DIODE SIL CARBIDE 650V 6A DPAK | DIODE SIL CARB 650V 6A TO220AC | DIODE SIL CARBIDE 650V 6A TO220F |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
Customers Also Interested in
Recommended Products

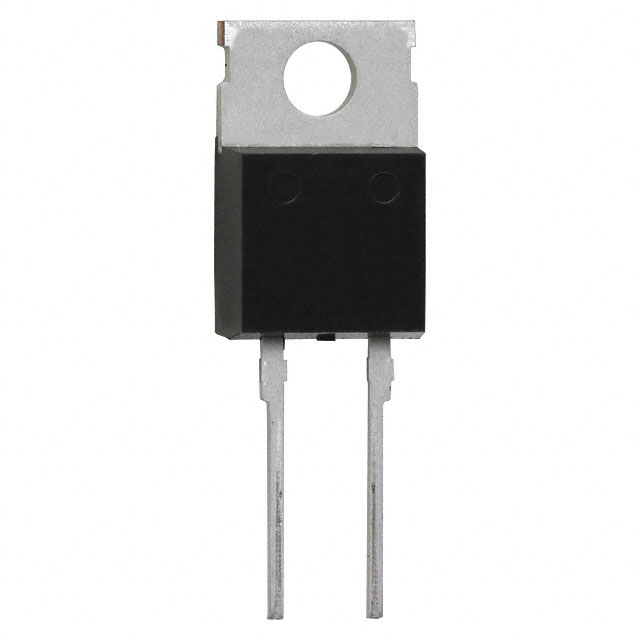

NXPSC046506Q
WeEn Semiconductors
NXPSC04650B6J
WeEn Semiconductors
NXPSC04650D6J
WeEn Semiconductors

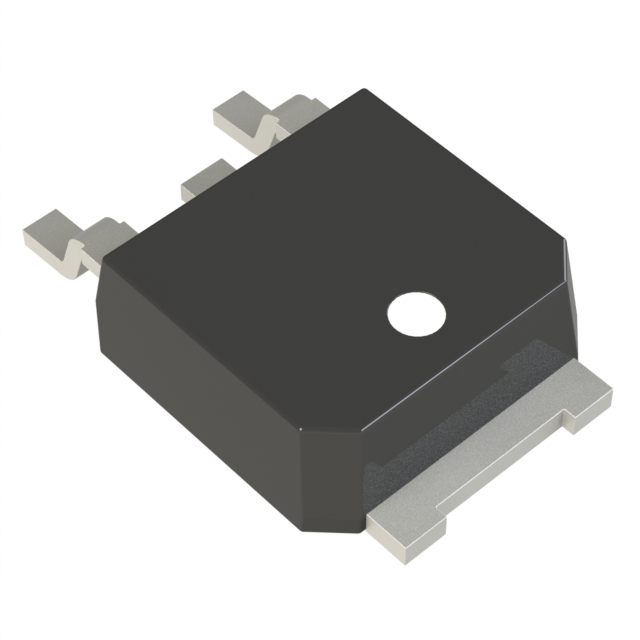

NXPSC04650DJ
WeEn Semiconductors
NXPSC04650Q
WeEn Semiconductors
NXPSC04650X6Q
WeEn Semiconductors

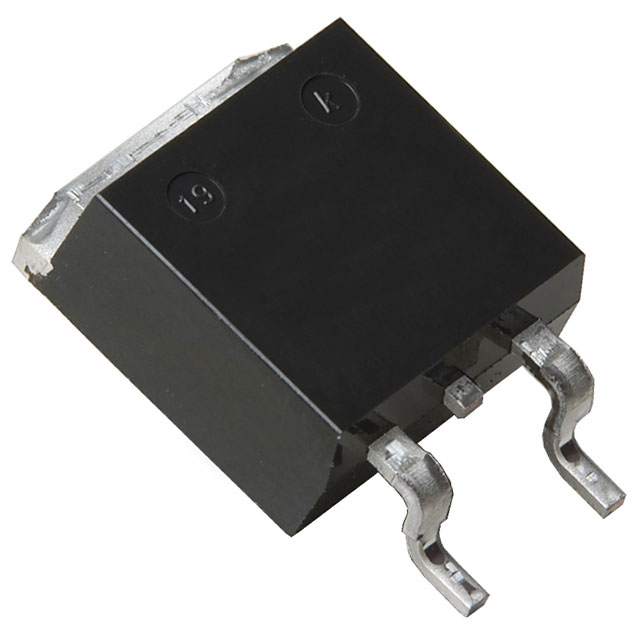

NXPSC06650B6J
WeEn Semiconductors
NXPSC06650D6J
WeEn Semiconductors

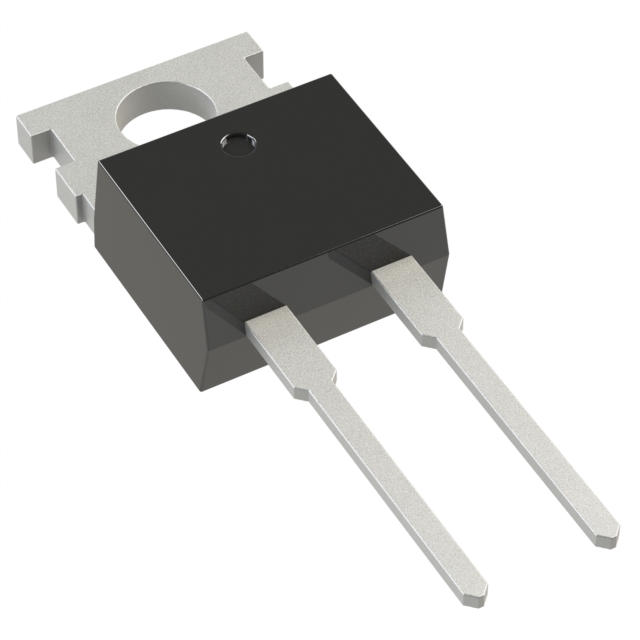

NXPSC06650Q
WeEn Semiconductors
NXPSC06650X6Q
WeEn Semiconductors

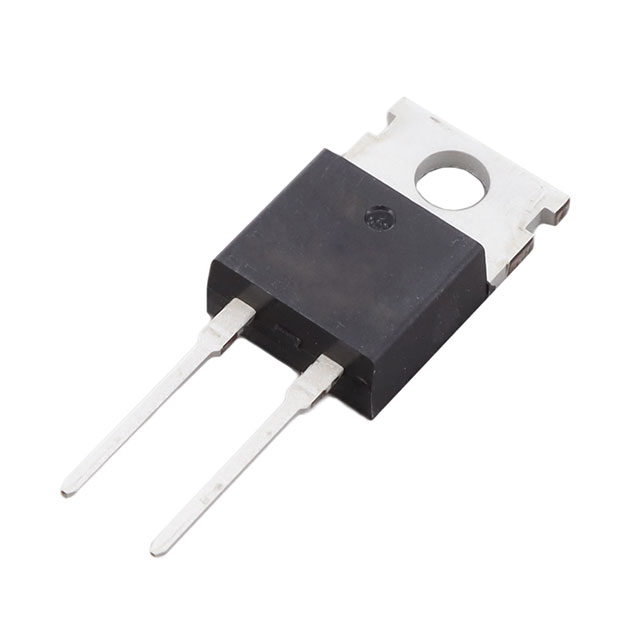

NXPSC086506Q
WeEn Semiconductors
NXPSC08650B6J
WeEn Semiconductors

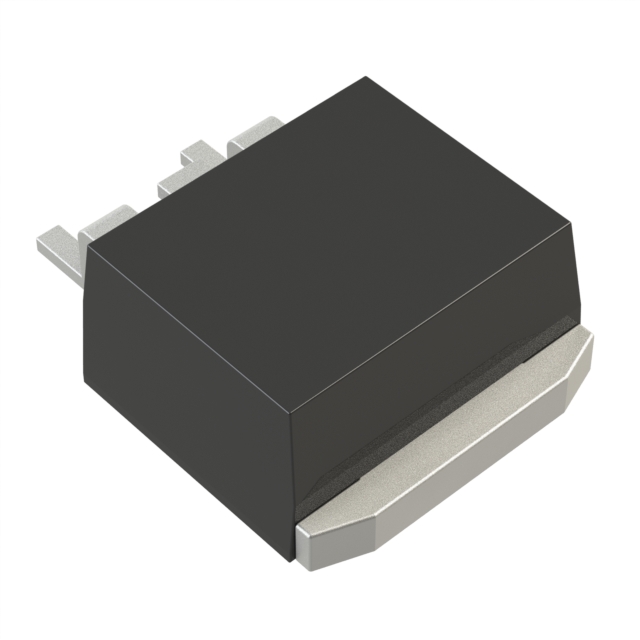

NXPSC08650BJ
WeEn Semiconductors

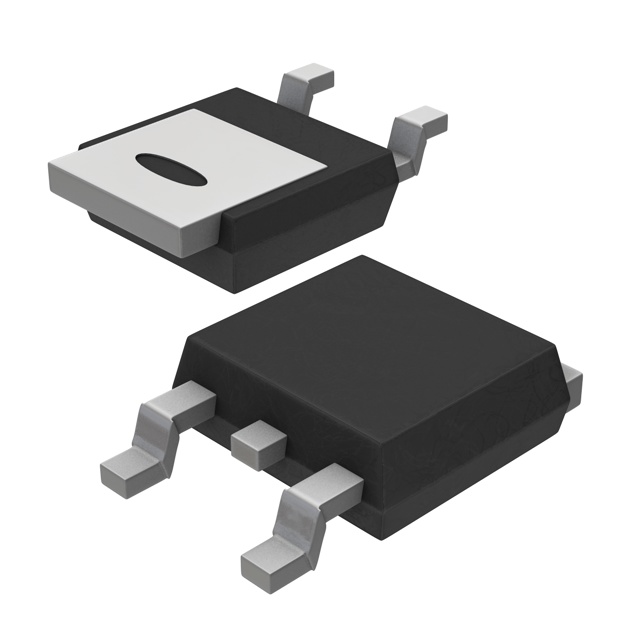

NXPSC08650D6J
WeEn Semiconductors
NXPSC08650DJ
WeEn Semiconductors
NXPSC08650Q
WeEn Semiconductors

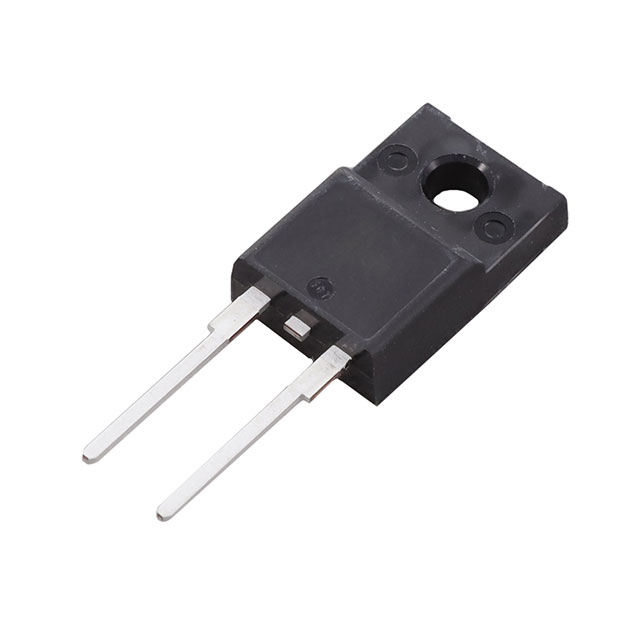

NXPSC08650X6Q
