NXPSC08650X6Q
lmages are for reference only.NXPSC08650X6Q
DIODE SIL CARBIDE 650V 8A TO220F
DatasheetTO-220-2 Full Pack, Isolated Tab
53,034 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 650 V 8A Through Hole TO-220F
NXPSC08650X6Q
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | WeEn Semiconductors |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 8 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 230 µA @ 650 V |
| Capacitance @ Vr, F | 260pF @ 1V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 Full Pack, Isolated Tab |
| Supplier Device Package | TO-220F |
| Operating Temperature - Junction | 175°C (Max) |
| Base Product Number | NXPSC |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | NXPSC086506Q | NXPSC08650B6J | NXPSC08650BJ | NXPSC08650D6J |
| Manufacturer | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors |
| RoHS Status | ||||

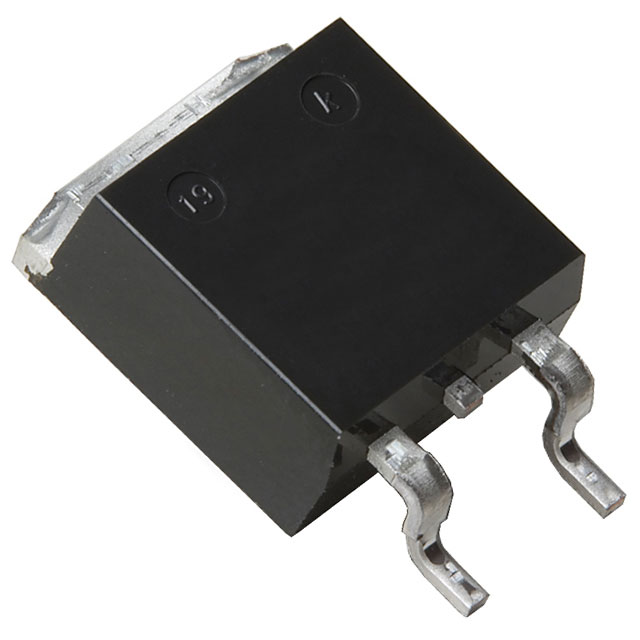

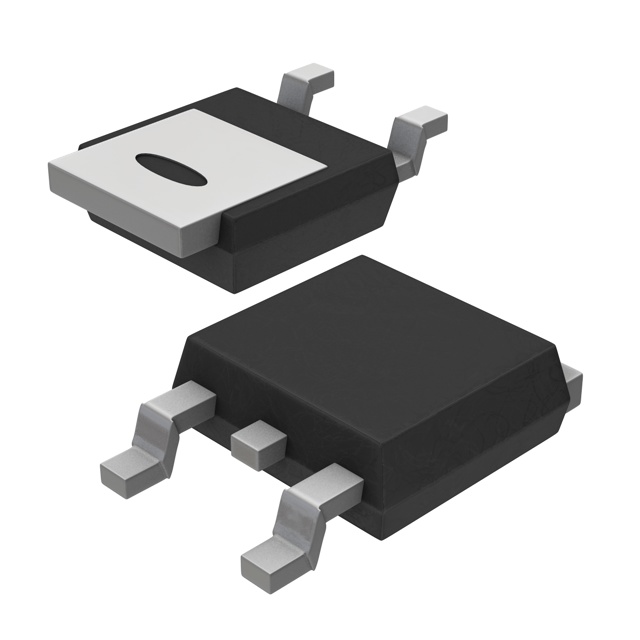

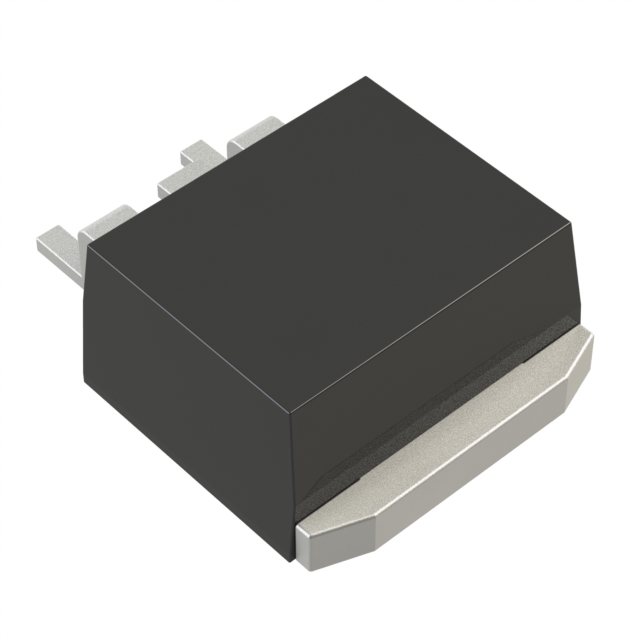

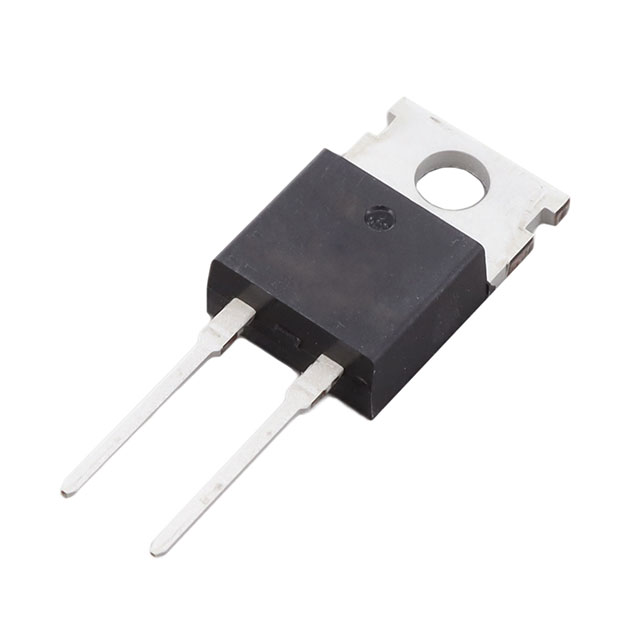

| Description | DIODE SIL CARB 650V 8A TO220AC | DIODE SIL CARBIDE 650V 8A D2PAK | DIODE SIL CARBIDE 650V 8A D2PAK | DIODE SIL CARBIDE 650V 8A DPAK |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
