OED-EL-1556SN-RP
lmages are for reference only.OED-EL-1556SN-RP
EMITTER IR 940NM 60MA RADIAL
DatasheetRadial
89,572 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Infrared (IR) Emitter 940nm 1.2V 60mA 1.8mW/sr @ 50mA 30° Radial
OED-EL-1556SN-RP
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | OED-EL-1556 |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 60mA |
| Radiant Intensity (Ie) Min @ If | 1.8mW/sr @ 50mA |
| Wavelength | 940nm |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Viewing Angle | 30° |
| Orientation | Top View |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Mounting Type | Through Hole, Right Angle |
| Package / Case | Radial |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | OED-EL-1L1 | OED-EL-1L2 | OED-EL-23G | OED-EL-8L |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

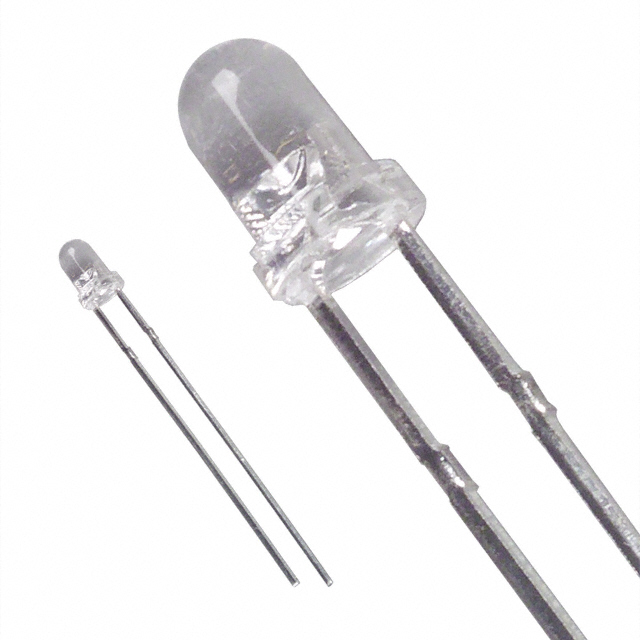

| Description | EMITTER IR 940NM 100MA RADIAL | EMITTER IR 940NM 100MA RADIAL | EMITTER IR 940NM 60MA SMD | EMITTER IR 940NM 100MA RADIAL |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
