OED-EL305F4C50-HT

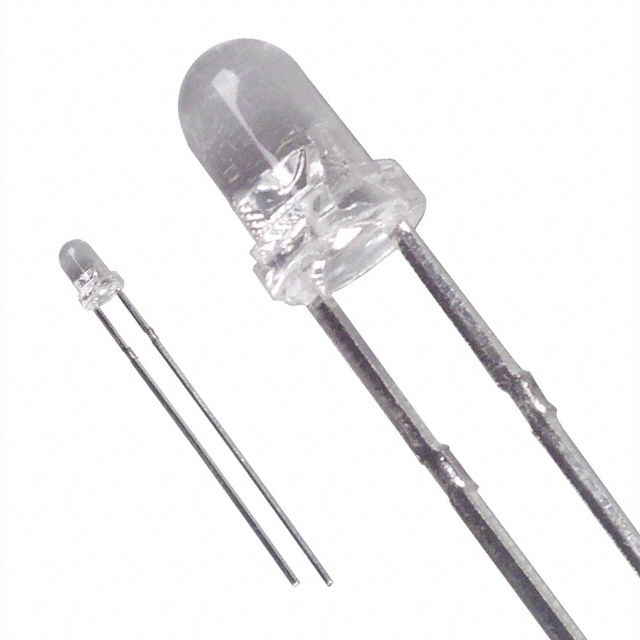

lmages are for reference only.OED-EL305F4C50-HT
T-3MM 940NM INFRARED EMITTER WAT
DatasheetRadial
26,854 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Infrared (IR) Emitter 940nm 1.2V 1.2A 7mW/sr @ 20mA 50° Radial
OED-EL305F4C50-HT
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | OED-EL305 |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 1.2A |
| Radiant Intensity (Ie) Min @ If | 7mW/sr @ 20mA |
| Wavelength | 940nm |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Viewing Angle | 50° |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
 |

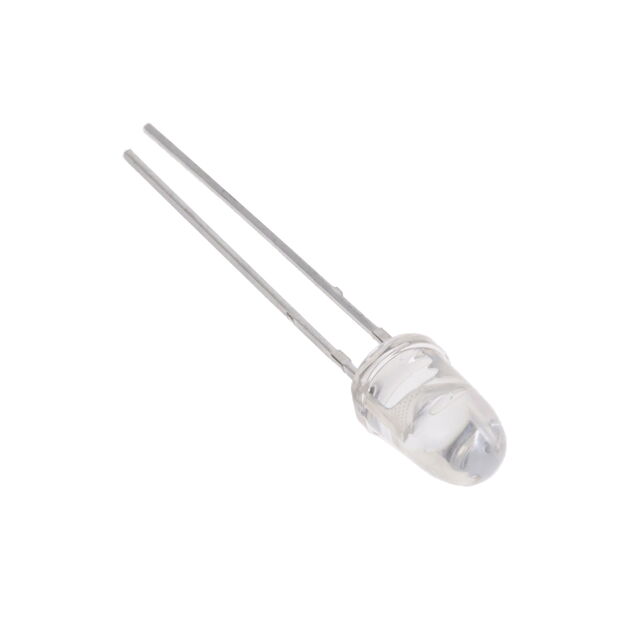

| Part Number | OED-CL-1L1 | OED-CL-1L2 | OED-EL-1556SN-RP | OED-EL-1L1 |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | EMITTER IR 880NM 100MA RADIAL | EMITTER IR 880NM 100MA RADIAL | EMITTER IR 940NM 60MA RADIAL | EMITTER IR 940NM 100MA RADIAL |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
