P4SMAJ58CA-AQ

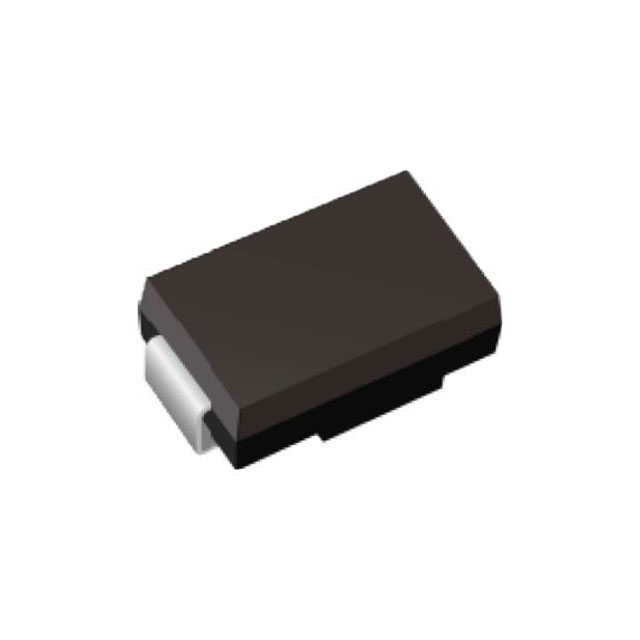

lmages are for reference only.P4SMAJ58CA-AQ
TVS DIODE 58VWM 93.6VC DO-214AC
DatasheetDO-214AC, SMA
95,999 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
93.6V Clamp 4.3A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
P4SMAJ58CA-AQ
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 58V |
| Voltage - Breakdown (Min) | 64.4V |
| Voltage - Clamping (Max) @ Ipp | 93.6V |
| Current - Peak Pulse (10/1000µs) | 4.3A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | P4SMAJ58CA-AU_R1_000A1 | P4SMAJ58CA | P4SMAJ58CAS_R1_00001 | P4SMAJ58CA_R1_00001 |
| Manufacturer | Panjit International Inc. | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SURFACE MOUNT TRANSIENT VOLTAGE | TVS SMA 58V 400W BIDIR | SURFACE MOUNT TRANSIENT VOLTAGE | SMA, TVS |
| Series | Panjit International Inc. | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
