P4SMAJ58CA-AU_R1_000A1
lmages are for reference only.P4SMAJ58CA-AU_R1_000A1
SURFACE MOUNT TRANSIENT VOLTAGE
DatasheetDO-214AC, SMA
37,536 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
93.6V Clamp 4.3A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
P4SMAJ58CA-AU_R1_000A1
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 58V |
| Voltage - Breakdown (Min) | 64.4V |
| Voltage - Clamping (Max) @ Ipp | 93.6V |
| Current - Peak Pulse (10/1000µs) | 4.3A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | P4SMAJ58 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

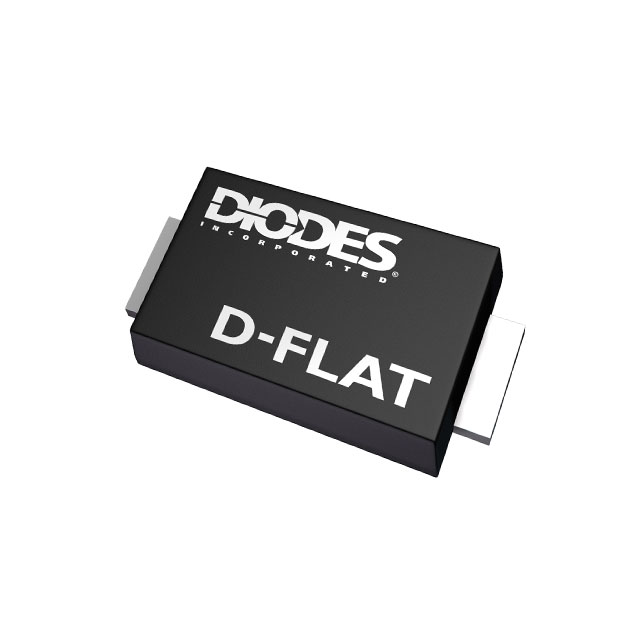

| Part Number | P4SMAJ58CA-AQ | P4SMAJ5.0 | P4SMAJ5.0A | P4SMAJ5.0ADF-13 |
| Manufacturer | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Diodes Incorporated |
| RoHS Status | Not applicable | ROHS3 Compliant | ||
| Description | TVS DIODE 58VWM 93.6VC DO-214AC | TVS DIODE 5VWM 10.3VC DO-214AC | TVS DIODE 5VWM 9.2VC SMA/DO214AC | TVS DIODE 5VWM 9.2VC D-FLAT |
| Series | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Diodes Incorporated |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
