PCN10-128S-2.54WB(72)
lmages are for reference only.PCN10-128S-2.54WB(72)
CONN DIN RCPT 128POS PCB RA GOLD
Datasheet-
32,464 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
128 Position Din Connector Receptacle, Female Sockets Gold Through Hole, Right Angle
PCN10-128S-2.54WB(72)
| Category | Connectors, Interconnects - Backplane Connectors - DIN 41612 |
| Manufacturer | Hirose Electric Co Ltd |
| Series | PCN10 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 128 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 4 |
| Style | - |
| Level, Class | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Wire Wrap |
| Features | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Operating Temperature | -55°C ~ 85°C |
| Current Rating (Amps) | 2A |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Base Product Number | PCN10 |
| Product Attribute | |
.jpg "PCN10-128S-2.54DSA(72)") |
|
|
| Part Number | PCN10-128S-2.54C | PCN10-128S-2.54DSA(72) | PCN10-128S-2.54DSA(73) | PCN10-128S-2.54DSA(77) |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | CONN DIN RCPT 128POS IN-LINE GLD | CONN DIN RCPT 128POS PCB GOLD | CONN DIN RCPT 128POS PCB GOLD | CONN DIN RCPT 128POS PCB GOLD |
| Series | PCN10 | PCN10 | PCN10 | PCN10 |
| Packaging | Bulk | Bulk | Tray | Tray |
Recommended Products
.jpg "PCN10-100P-2.54DS(72)")
.jpg "PCN10-100P-2.54DSA(72)")
.jpg "PCN10-128P-2.54DS(72)")
.jpg "PCN10-128P-2.54DSA(72)")
.jpg "PCN10-16P-2.54DS(72)")
.jpg "PCN10-20P-2.54DS(72)")

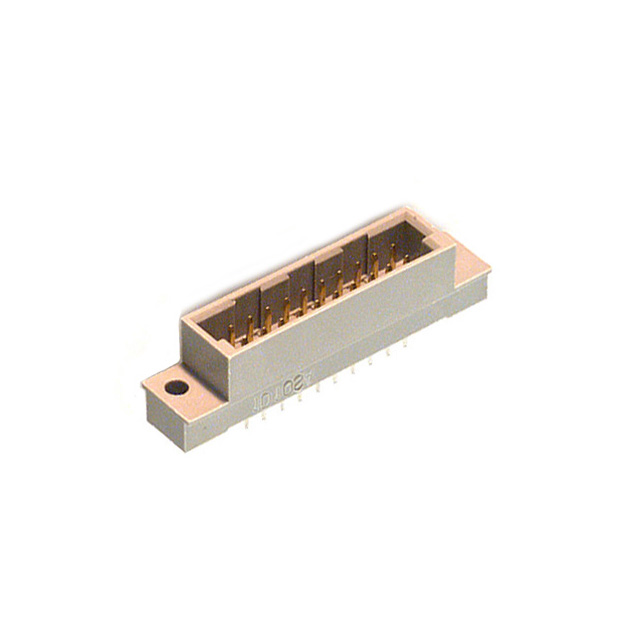

.jpg "PCN10-20P-2.54DSA(72)")
