PE-0402CD680JTT

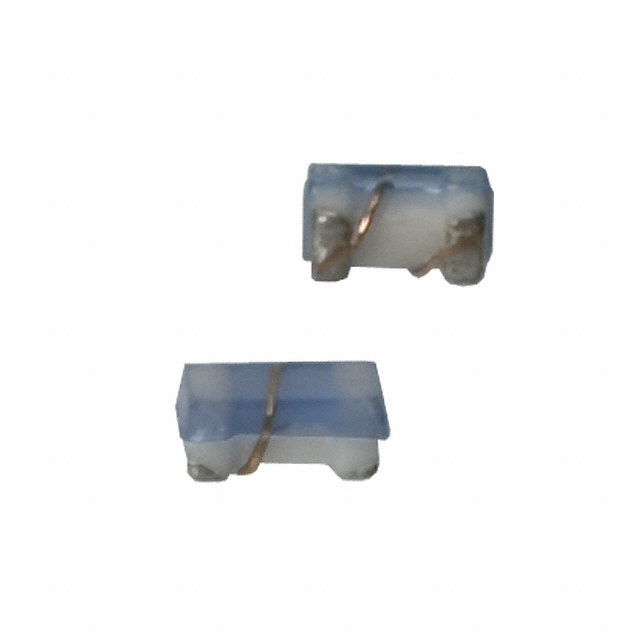

lmages are for reference only.PE-0402CD680JTT
FIXED IND 68NH 100MA 970MOHM SMD
Datasheet0402 (1005 Metric)
44,940 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
68 nH Unshielded Drum Core, Wirewound Inductor 100 mA 970mOhm 0402 (1005 Metric)
PE-0402CD680JTT
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Pulse Electronics |
| Series | 0402CD |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 68 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 100 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 970mOhm |
| Q @ Freq | 16 @ 250MHz |
| Frequency - Self Resonant | 1.84GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.047" L x 0.026" W (1.19mm x 0.66mm) |
| Height - Seated (Max) | 0.024" (0.61mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | PE-0402CD680JTG | PE-0402CD680KTT | PE-0402CD100GTT | PE-0402CD100JTG |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | |||
| Description | FIXED IND 68NH 100MA 970MOHM SMD | FIXED IND 68NH 100MA 970MOHM SMD | FIXED IND 10NH 480MA 195MOHM SMD | FIXED IND 10NH 480MA 195MOHM SMD |
| Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
