PFC199224B-561K

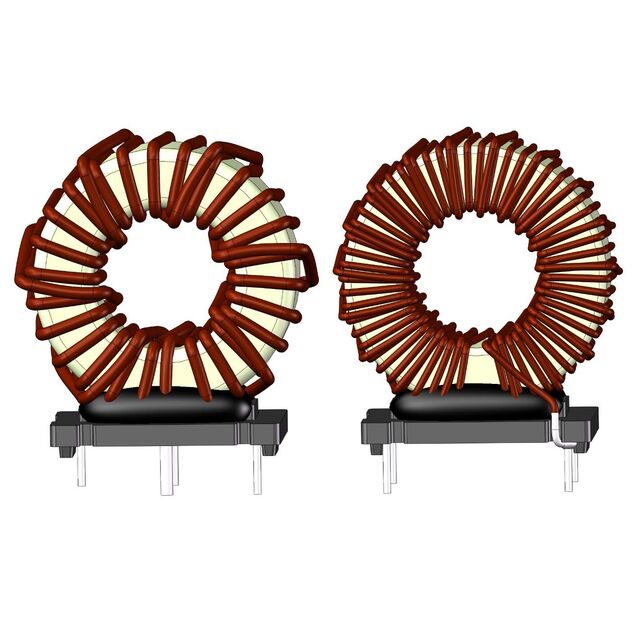

lmages are for reference only.PFC199224B-561K
PFC CHOKE 560.0UH 20.1A 61.0 M
DatasheetVertical, 4 PC Pin
26,109 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
560 µH Unshielded Toroidal Inductor 9.9 A 61mOhm Max Vertical, 4 PC Pin
PFC199224B-561K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | PFC199224B |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Toroidal |
| Material - Core | Alloy Powder |
| Inductance | 560 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 9.9 A |
| Current - Saturation (Isat) | 10.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 61mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Supplier Device Package | - |
| Size / Dimension | 1.969" L x 1.063" W (50.00mm x 27.00mm) |
| Height - Seated (Max) | 2.224" (56.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PFC199224B-101K | PFC199224B-102MHF | PFC199224B-201K | PFC199224B-251K |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | PFC CHOKE 100.0UH 46.6A 13.8 M | PFC CHOKE 1000.0UH 14.9A 121.5M | PFC CHOKE 200.0UH 33.6A 23.0 M | PFC CHOKE 250.0UH 30.1A 32.0 M |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
