PFC199224B-691K

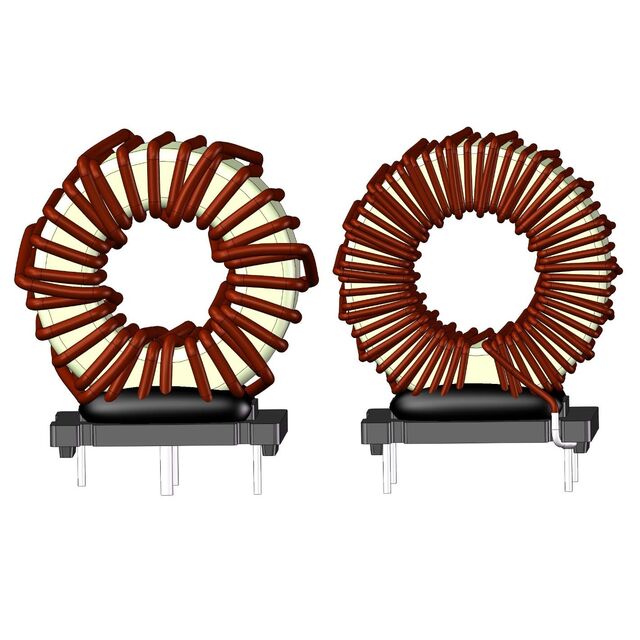

lmages are for reference only.PFC199224B-691K
PFC CHOKE 690.0UH 18.0A 76.5 M
DatasheetVertical, 4 PC Pin
34,760 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
690 µH Unshielded Toroidal Inductor 8.5 A 76.5mOhm Vertical, 4 PC Pin
PFC199224B-691K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | PFC199224B |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Toroidal |
| Material - Core | Alloy Powder |
| Inductance | 690 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 8.5 A |
| Current - Saturation (Isat) | 9.4A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 76.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Supplier Device Package | - |
| Size / Dimension | 1.949" L x 1.063" W (49.50mm x 27.00mm) |
| Height - Seated (Max) | 2.205" (56.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PFC199224B-101K | PFC199224B-102MHF | PFC199224B-201K | PFC199224B-251K |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | PFC CHOKE 100.0UH 46.6A 13.8 M | PFC CHOKE 1000.0UH 14.9A 121.5M | PFC CHOKE 200.0UH 33.6A 23.0 M | PFC CHOKE 250.0UH 30.1A 32.0 M |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
