PI3DBS12412AZHEX
lmages are for reference only.PI3DBS12412AZHEX
IC MUX/DEMUX 2:1 12GBPS 42TQFN
Datasheet40-WFQFN Exposed Pad
70,636 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Thunderbolt Switch IC 2 Channel 40-TQFN (3x6)
PI3DBS12412AZHEX
| Category | Integrated Circuits (ICs) - Interface - Analog Switches Special Purpose |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Applications | Thunderbolt |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Switch Circuit | - |
| Number of Channels | 2 |
| On-State Resistance (Max) | - |
| Voltage - Supply, Single (V+) | 3.3V |
| Voltage - Supply, Dual (V±) | - |
| -3db Bandwidth | 11.3GHz |
| Features | Bi-Directional |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-TQFN (3x6) |
| Base Product Number | PI3DBS12412 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

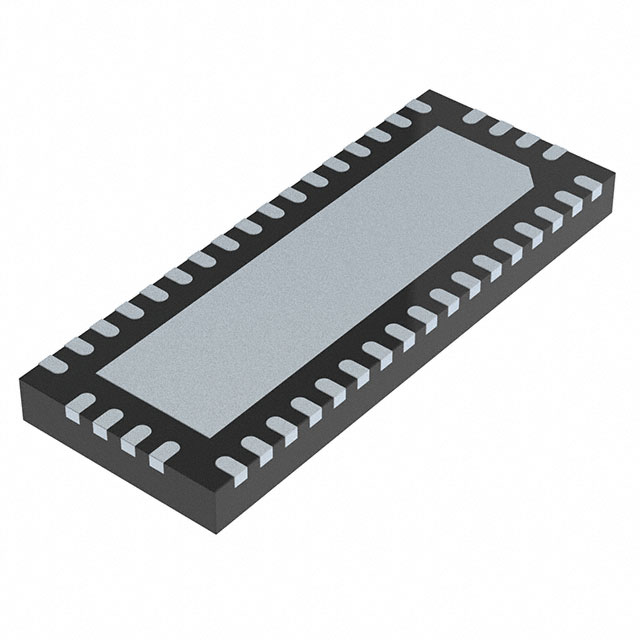

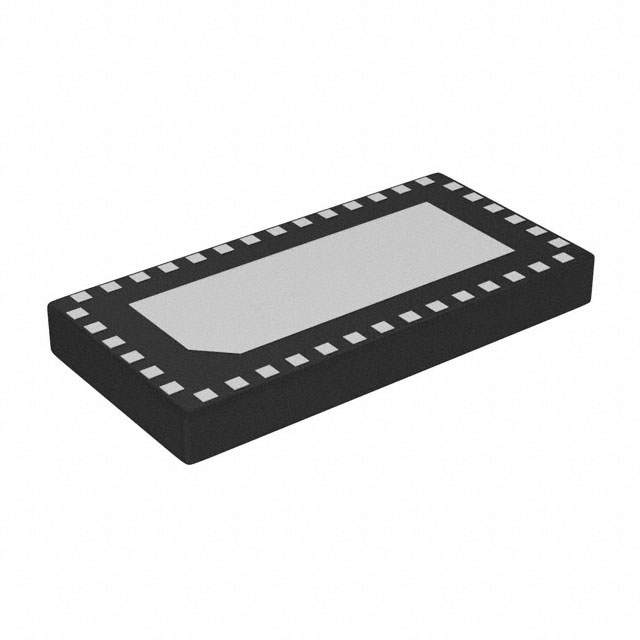

| Part Number | PI3DBS12412AZHE | PI3DBS12412AZLE | PI3DBS12412AZLEX | PI3DBS12412ZLE |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MUX/DEMUX 2:4 42TQFN | IC MUX/DEMUX 2:4 40TQFN | IC MUX/DEMUX 2:1 12GBPS 40TQFN | IC MUX/DEMUX 2:1 12GBPS |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tray |
