PI3DBS16412ZHEX
lmages are for reference only.PI3DBS16412ZHEX
PCIE SWITCH V-QFN3590-42
Datasheet42-VFQFN Exposed Pad
29,868 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
PCIe 4.0, USB Switch IC 4 Channel 42-TQFN (9x3.5)
PI3DBS16412ZHEX
| Category | Integrated Circuits (ICs) - Interface - Analog Switches Special Purpose |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Applications | PCIe 4.0, USB |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Switch Circuit | SPDT |
| Number of Channels | 4 |
| On-State Resistance (Max) | - |
| Voltage - Supply, Single (V+) | 3.3V |
| Voltage - Supply, Dual (V±) | - |
| -3db Bandwidth | 13GHz |
| Features | Bi-Directional, USB 3.0, USB 3.1 |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 42-VFQFN Exposed Pad |
| Supplier Device Package | 42-TQFN (9x3.5) |
| Base Product Number | PI3DBS16412 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

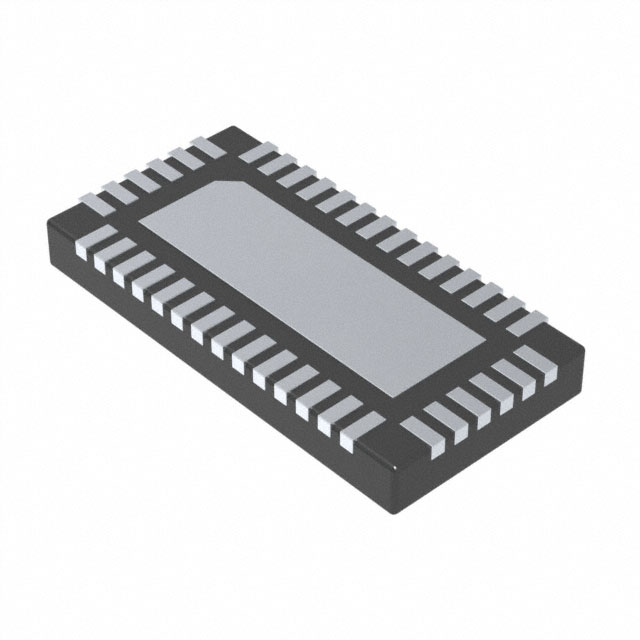

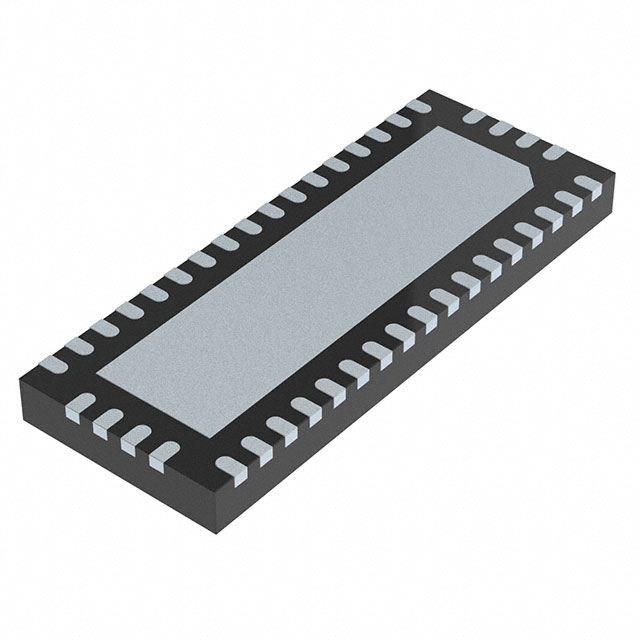

| Part Number | PI3DBS16412ZLCEX | PI3DBS16412ZLCEX-55 | PI3DBS16413ZHEX | PI3DBS16413ZHEX-55 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PCIE SWITCH W-QFN3060-40 T&R 3.5 | PCIE SWITCH W-QFN3060-40 | PCIE SWITCH V-QFN3590-42 | PCIE SWITCH V-QFN3590-42 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
