Product CatalogPart Number
PLF1A561MDO1
Manufacturer
NichiconDescription
CAP ALUM POLY 560UF 20% 10V TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
64,251 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PLF1A561MDO1
PLF1A561MDO1

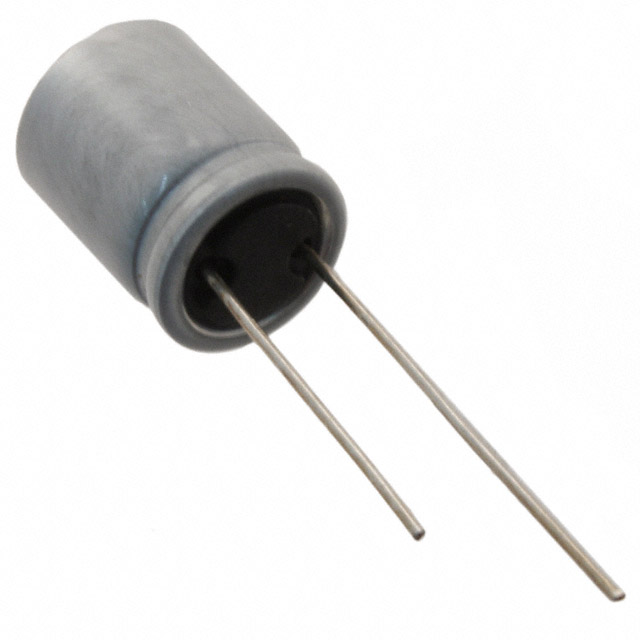

lmages are for reference only.Payment Methods
Delivery Services
560 µF 10 V Aluminum - Polymer Capacitors Radial, Can 7mOhm 2000 Hrs @ 105°C
Quick Inquiry
PLF1A561MDO1
Specifications
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Nichicon |
| Series | PLF |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.9 A @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Features | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | PLF1A561MDO1TD | PLE0E821MDO1 | PLF1A681MDO1 | PLV1K100MCL1TD |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 560UF 20% 10V TH | CAP ALUM POLY 820UF 20% 2.5V TH | CAP ALUM POLY 680UF 20% 10V TH | CAP ALUM POLY 10UF 20% 80V TH |
| Series | PLF | PLE | PLF | PLV |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
