Product CatalogPart Number
PLF1A561MDO1TD
Manufacturer
NichiconDescription
CAP ALUM POLY 560UF 20% 10V TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
81,965 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PLF1A561MDO1TD
PLF1A561MDO1TD
lmages are for reference only.Payment Methods
Delivery Services
560 µF 10 V Aluminum - Polymer Capacitors Radial, Can 7mOhm 2000 Hrs @ 105°C
Quick Inquiry
PLF1A561MDO1TD
Specifications
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Nichicon |
| Series | PLF |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.9 A @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Features | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | PLF1A561MDO1 | PLF1A101MDL4 | PLF1A101MDL4TD | PLF1A151MDL4 |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 560UF 20% 10V TH | CAP ALUM POLY 100UF 20% 10V TH | CAP ALUM POLY 100UF 20% 10V TH | CAP ALUM POLY 150UF 20% 10V TH |
| Series | PLF | PLF | PLF | PLF |
| Packaging | Bulk | Bulk | Cut Tape (CT)-->Tape & Box (TB) | Bulk |
Customers Also Interested in
Recommended Products
PLF1A101MDL4
Nichicon
PLF1A101MDL4TD
Nichicon
PLF1A151MDL4
Nichicon
PLF1A151MDL4TD
Nichicon
PLF1A221MDL4
Nichicon
PLF1A271MDO
Nichicon
PLF1A271MDO1
Nichicon

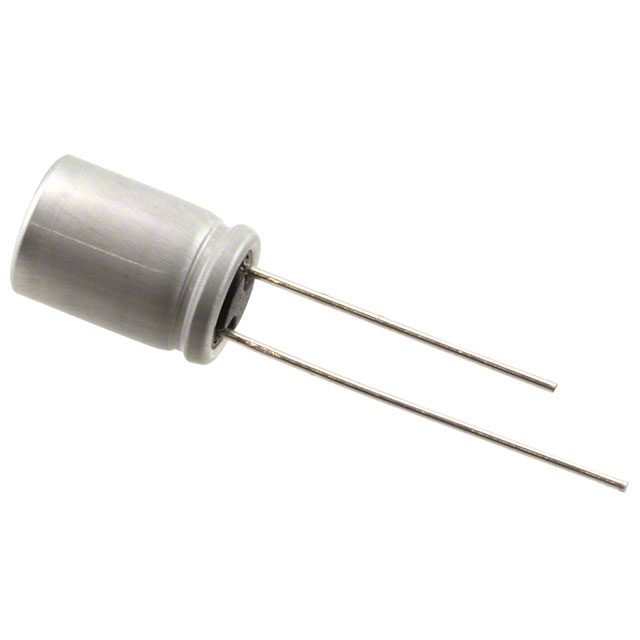

PLF1A271MDO1TD
Nichicon

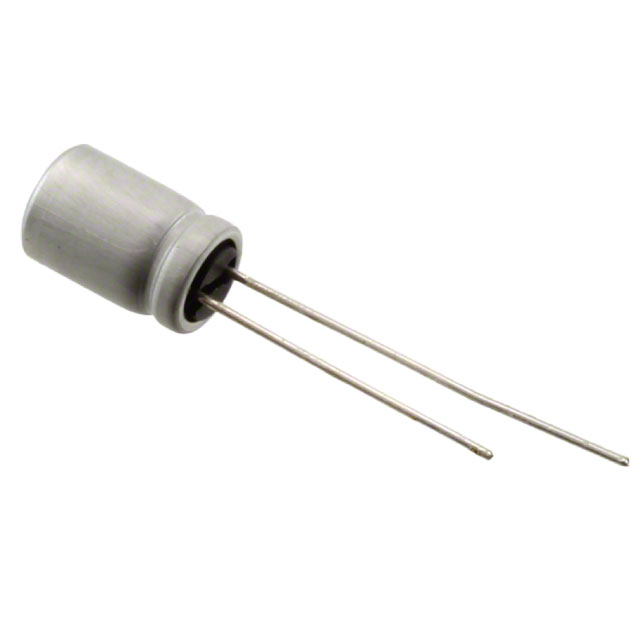

PLF1A470MDL4
Nichicon
PLF1A470MDL4TD
Nichicon
PLF1A471MDO
Nichicon

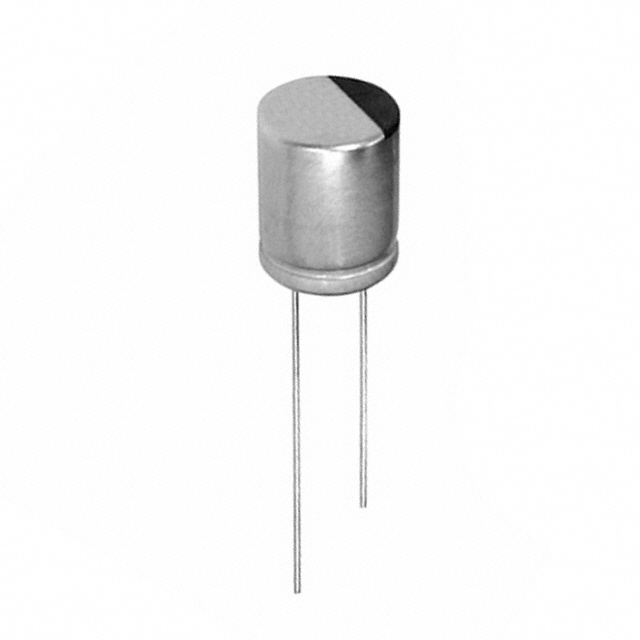

PLF1A471MDO1
Nichicon

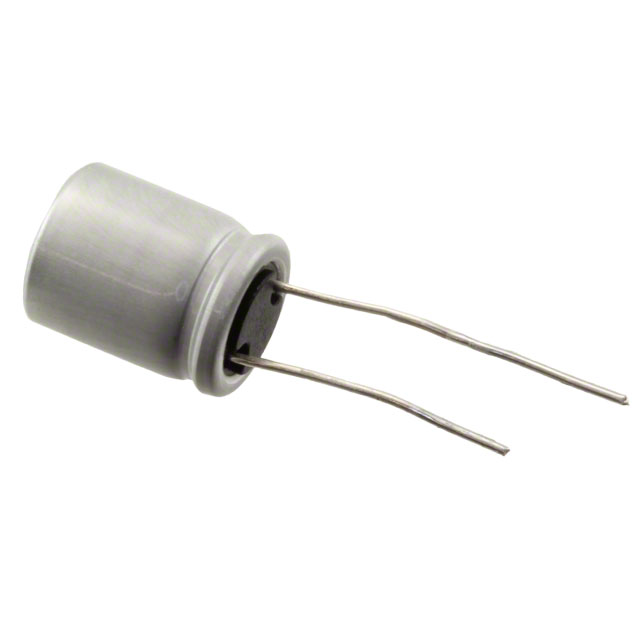

PLF1A471MDO1TD
Nichicon

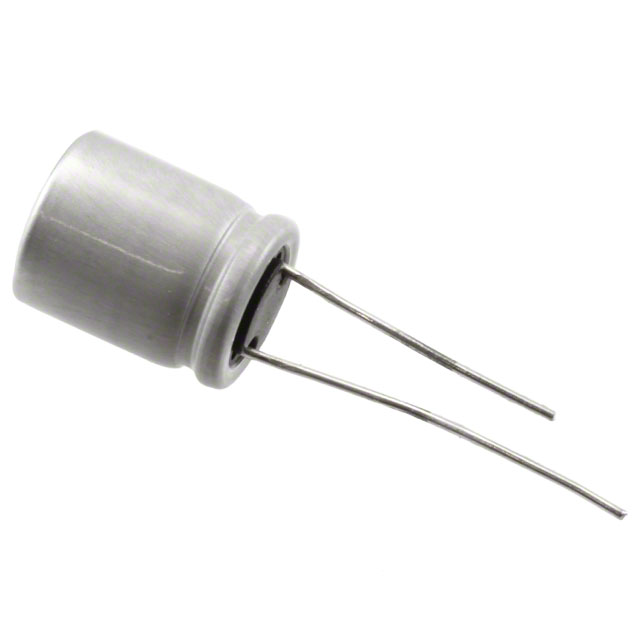

PLF1A561MDO1
Nichicon
PLF1A680MDL4
Nichicon
PLF1A680MDL4TD
Nichicon
PLF1A681MDO1
Nichicon

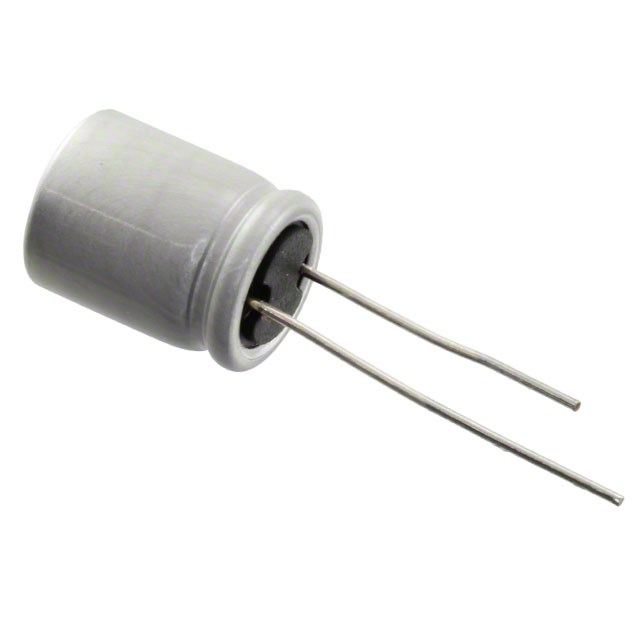

PLF1A681MDO1TD
