PST360G2G2-1A-C0007-ERA180-05K
lmages are for reference only.PST360G2G2-1A-C0007-ERA180-05K
SENSOR ANGLE 180DEG WIRE LEADS
DatasheetBox with Wire Leads
45,217 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Angle, Linear, Rotary Hole for Shaft Wire Leads
PST360G2G2-1A-C0007-ERA180-05K
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PST360G2 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Angle, Linear, Rotary |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 180° |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Actuator Type | Hole for Shaft |
| Linearity | ±1% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Box with Wire Leads |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | PST360G2 |
| Product Attribute |  |
 |
 |
 |

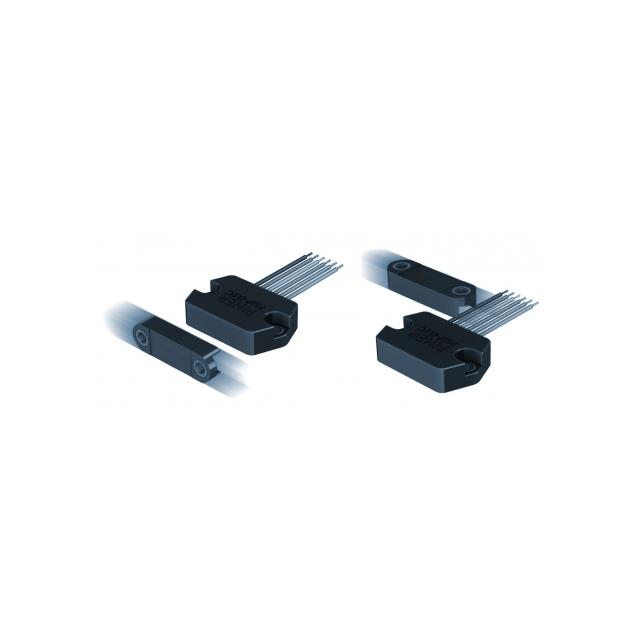

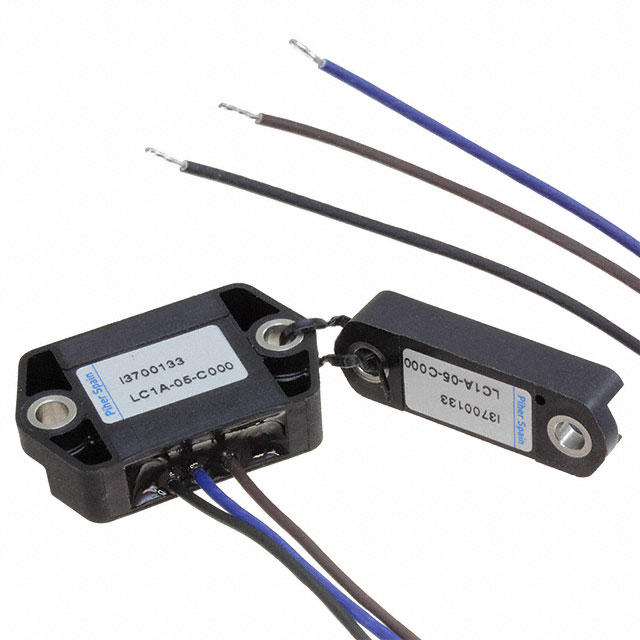

| Part Number | PS2P-LIN-CE-M002-1A0-L0000-ELS120-05 | PS2P-ARC-LA-M009-A-045S-05 | PST360G2-2AA-C0036-ERA180-05K | PS2P-LIN-LA-M002-2-AA-L0016-ELS250-RE |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR LINEAR 12MM WIRE LEADS | PLAY RESISTANT ARC POSITION SENS | HALL-EFFECT THROUGH-SHAFT ROTARY | 2-PIECE TOUCHLESS HALL-EFFECT LI |
| Series | PS2P-LIN | PS2P-ARC | PST-360 | PS2P-LIN |
| Packaging | Bulk | Bulk | Bulk | Bulk |
