PTR060V0010-TR1

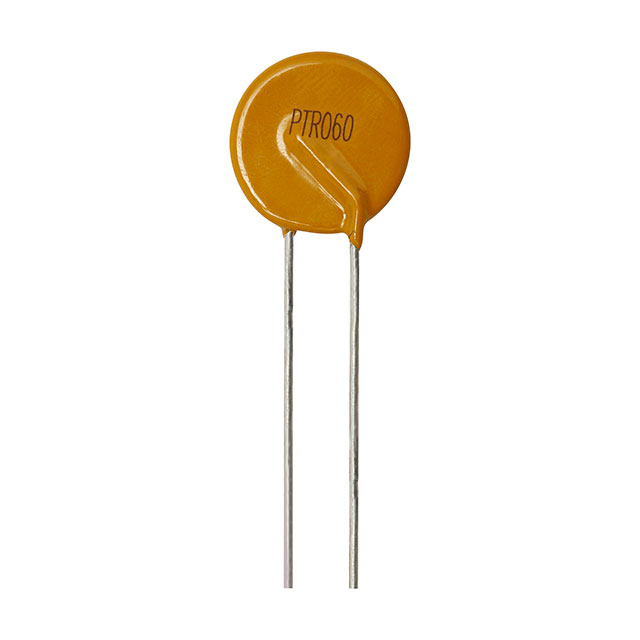

lmages are for reference only.PTR060V0010-TR1
PTC RESET FUSE 60V 100MA RADIAL
DatasheetRadial, Disc
82,543 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 60V 100 mA Ih Through Hole Radial, Disc
PTR060V0010-TR1
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Eaton - Electronics Division |
| Series | PTR060V |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Trip (It) | 200 mA |
| Current - Max | 40 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
| Approval Agency | cURus, TUV |
| Time to Trip | 4 s |
| Resistance - Initial (Ri) (Min) | 2.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 7.5 Ohms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PTR060V0010-BK | PTR060V0010-BK1 | PTR060V0010-TR | PTR060V0017-BK |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | PTC RESET FUSE 60V 100MA RADIAL | PTC RESET FUSE 60V 100MA RADIAL | PTC RESET FUSE 60V 100MA RADIAL | PTC RESET FUSE 60V 170MA RADIAL |
| Series | PTR060V | PTR060V | PTR060V | PTR060V |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
