PTVA030121EA-V1-R0
lmages are for reference only.PTVA030121EA-V1-R0
RF MOSFET LDMOS 50V H-36265-2
DatasheetH-36265-2
59,506 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Mosfet 50 V 50 mA 390MHz ~ 450MHz 25dB 12W H-36265-2
PTVA030121EA-V1-R0
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Technology | LDMOS |
| Configuration | - |
| Frequency | 390MHz ~ 450MHz |
| Gain | 25dB |
| Voltage - Test | 50 V |
| Current Rating (Amps) | - |
| Noise Figure | - |
| Current - Test | 50 mA |
| Power - Output | 12W |
| Voltage - Rated | 105 V |
| Mounting Type | Chassis Mount |
| Package / Case | H-36265-2 |
| Supplier Device Package | H-36265-2 |
| Base Product Number | PTVA030121 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

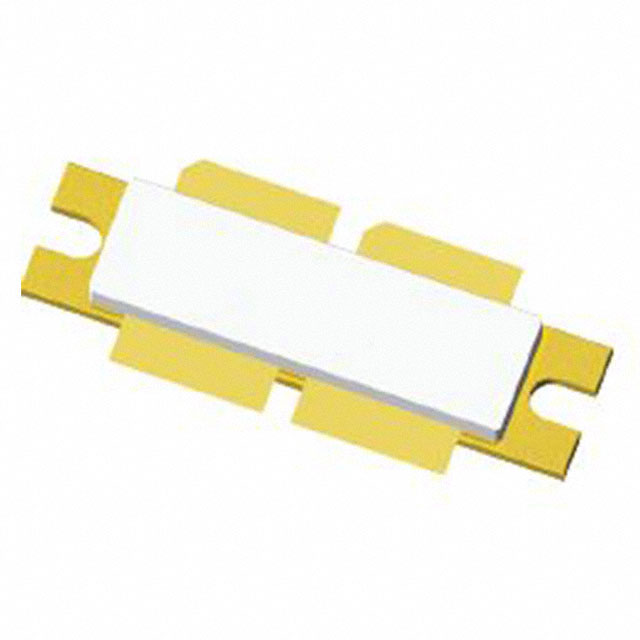

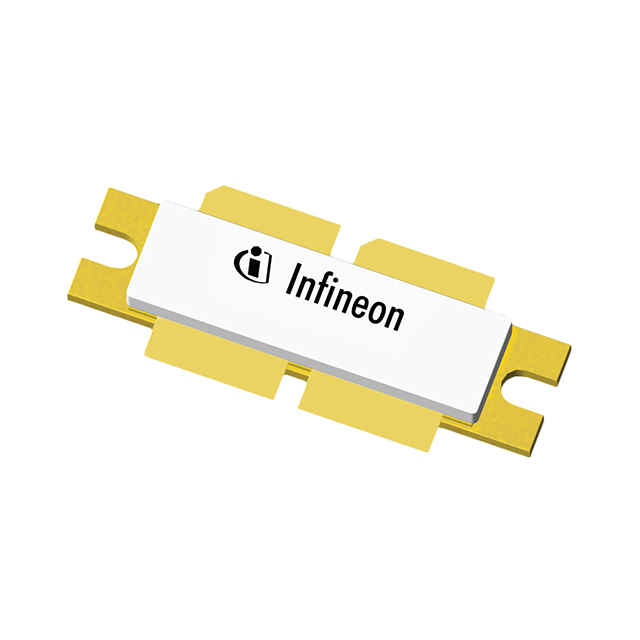

| Part Number | PTVA030121EA-V1-R250 | PTVA030121EAV1XWSA1 | PTVA035002EV-V1-R0 | PTVA035002EV-V1-R250 |
| Manufacturer | MACOM Technology Solutions | Infineon Technologies | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | RF MOSFET LDMOS | RF MOSFET LDMOS H-36265-2 | RF MOSFET LDMOS 50V H-36275-4 | RF MOSFET LDMOS 50V H-36275-4 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tray | Strip | Tape & Reel (TR) |
