Product CatalogPart Number
RAHTX271M1EEH0002
Manufacturer
Taiyo YudenDescription
CAP ALUMHYB 270UF 20% 16V SMD
Datasheet
DatasheetPackage
Radial, Can - SMD
In Stock
36,295 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RAHTX271M1EEH0002
RAHTX271M1EEH0002
lmages are for reference only.Payment Methods
Delivery Services
270 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 20mOhm 4000 Hrs @ 135°C
Quick Inquiry
RAHTX271M1EEH0002
Specifications
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Taiyo Yuden |
| Series | HTX |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Hybrid |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 170 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.331" L x 0.331" W (8.40mm x 8.40mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | Anti-Vibration |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | RAHT1101M1TDE7002 | RAHT1101M1TDE7002E | RAHT1121M4EGL5005E | RAHT1151M1GEH0002E |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

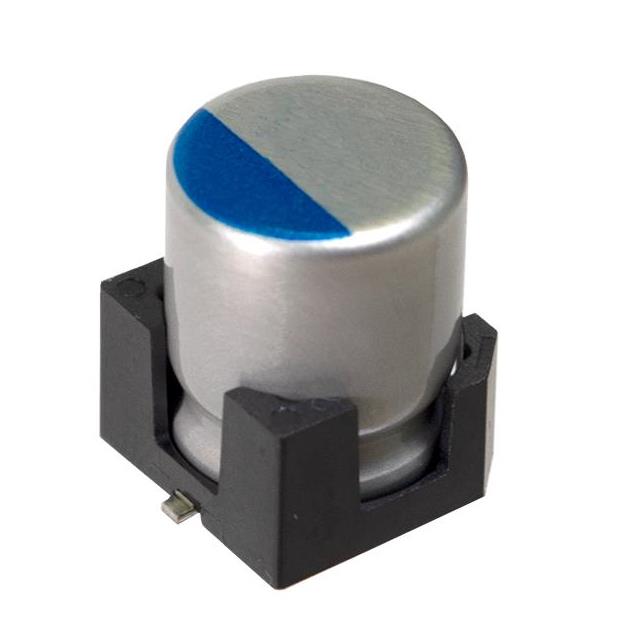

| Description | CAP ALUMHYB 100UF 20% 25V SMD | CAP ALUMHYB 100UF 20% 25V SMD | CAP ALUMHYB 120UF 20% 63V SMD | CAP ALUMHYB 150UF 20% 35V SMD |
| Series | HT1 | HT1 | HT1 | HT1 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
