RM203012
lmages are for reference only.RM203012
RELAY GEN PURPOSE DPDT 16A 12V
Datasheet-
76,154 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 12VDC Coil Chassis Mount
RM203012
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | RM, SCHRACK |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 440VAC - Max |
| Load - Max Switching | 7040VA |
| Coil Current | 109 mA |
| Coil Type | Non Latching |
| Features | Mechanical Indicator |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -45°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 110 Ohms |
| Base Product Number | RM2030 |
| Product Attribute |  |
 |
 |
|

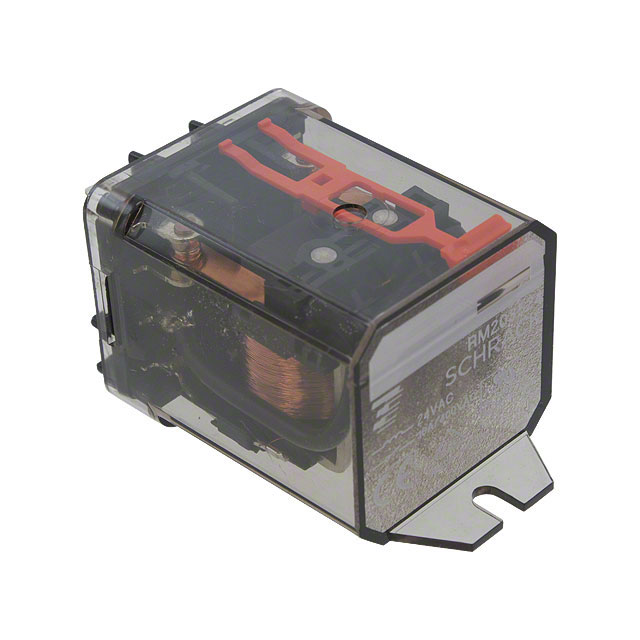

| Part Number | RM203524 | RM302024 | RM85-2011-35-1003 | RM699BV-3011-85-1005 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | Altech Corporation | Altech Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | RELAY GEN PURPOSE DPDT 16A 24V | RELAY GEN PURPOSE 3PDT 10A 24V | RELAY GEN PURPOSE SPDT 16A 3V | RELAY GEN PURPOSE SPDT 6A 5V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | Altech Corporation | Altech Corporation |
| Packaging | Bulk | Bulk | Bulk | Bulk |
