RM835024
lmages are for reference only.RM835024
RELAY GEN PURPOSE DPDT 25A 24V
Datasheet-
56,203 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 24VDC Coil Chassis Mount
RM835024
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | RM, SCHRACK |
| Packaging | Tray |
| RoHS Status | |
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 10000VA |
| Coil Current | 50 mA |
| Coil Type | Non Latching |
| Features | Mechanical Indicator, Test Button |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -45°C ~ 65°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 475 Ohms |
| Base Product Number | RM8350 |
| Product Attribute |  |
 |
 |
 |

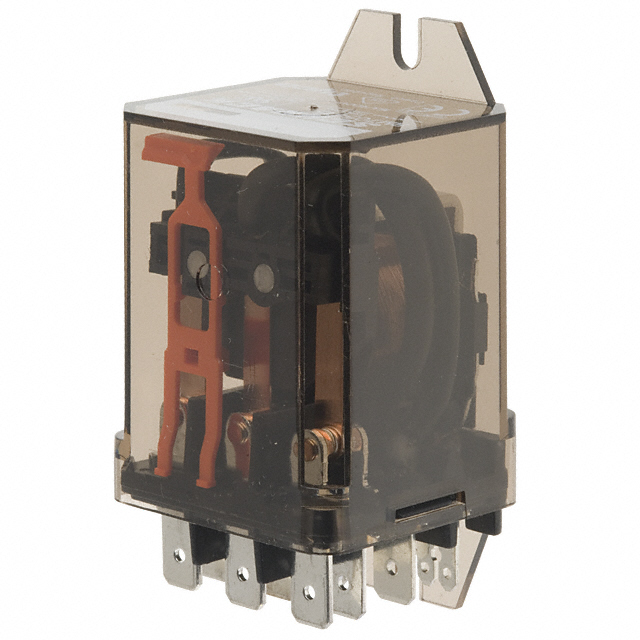

| Part Number | RM835012 | RM835048 | RM835730 | RM302024 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ||||
| Description | RELAY GEN PURPOSE DPDT 25A 12V | RELAY GEN PURPOSE DPDT 25A 48V | RELAY GEN PURPOSE DPDT 25A 230V | RELAY GEN PURPOSE 3PDT 10A 24V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Bulk | Bulk |
