RT9715BGF

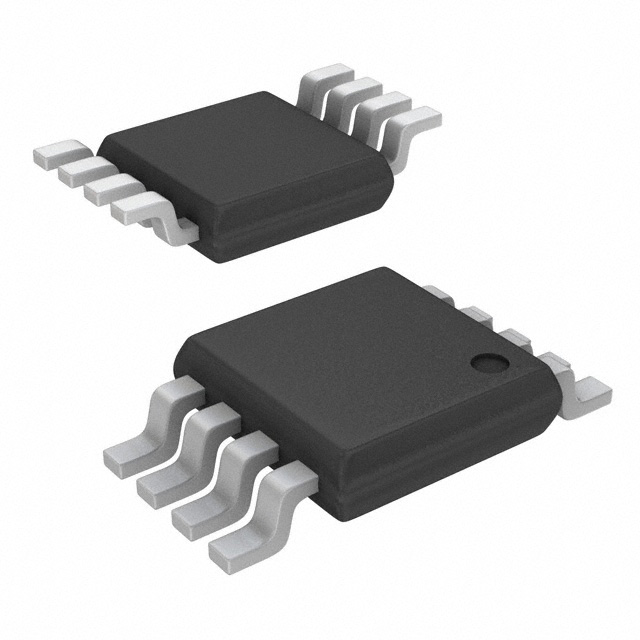

lmages are for reference only.RT9715BGF
IC PWR SWITCH N-CHAN 1:1 8MSOP
Datasheet8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
65,476 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 N-Channel 2A 8-MSOP
RT9715BGF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | Richtek USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2A |
| Rds On (Typ) | 90mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MSOP |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Base Product Number | RT9715 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RT9715BGB | RT9715BGBG | RT9715BGBR | RT9715BGQW |
| Manufacturer | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

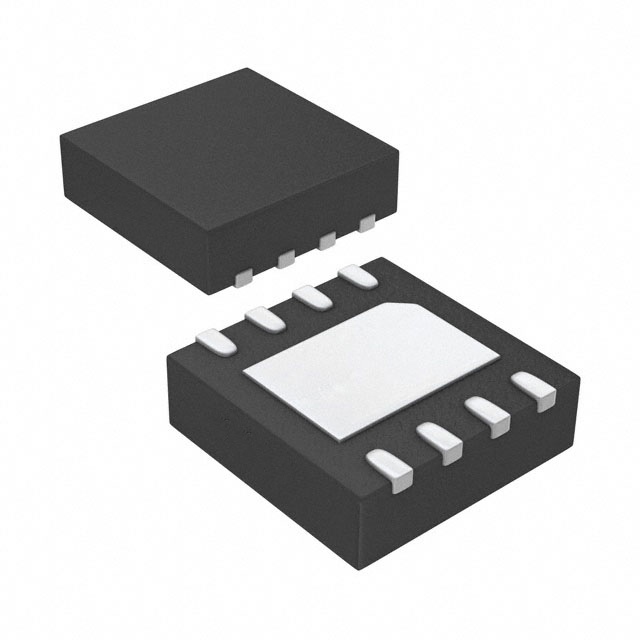

| Description | IC PWR SWITCH N-CHAN 1:1 SOT23-5 | IC PWR SWTCH N-CHAN 1:1 SOT23-5G | IC PWR SWTCH N-CHAN 1:1 SOT23-5R | IC PWR SWITCH N-CHAN 1:1 8WDFN |
| Series | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
