RTQ2130B-50GQW-QT
lmages are for reference only.RTQ2130B-50GQW-QT
IC REG BUCK 5V 700MA 8WDFN
Datasheet8-WFDFN Exposed Pad
35,969 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Switching Regulator IC Positive Fixed 5V 1 Output 700mA 8-WFDFN Exposed Pad
RTQ2130B-50GQW-QT
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Richtek USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 700mA |
| Frequency - Switching | 2.1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WDFN-SL (2x3) |
| Base Product Number | RTQ2130 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |

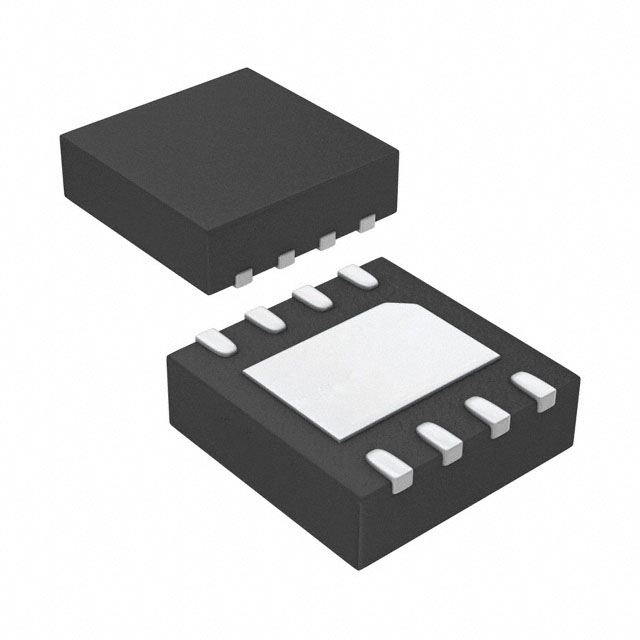

| Part Number | RTQ2130BGQW-QT | RT7240GSP | RT7291BGQUF | RT8298EZQW |
| Manufacturer | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG BUCK ADJ 700MA 8WDFN | IC REG BUCK ADJ 5A 8SOP | IC REG BUCK 5.1V 6A 16UQFN | IC REG BUCK ADJ 6A 14WDFN |
| Series | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
