Product CatalogPart Number
S6E2H16G0AGB30000
Manufacturer
SpansionDescription
IC MCU 32BIT 544KB FLASH 121FBGA
Datasheet
DatasheetPackage
121-TFBGA
In Stock
17,742 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
S6E2H16G0AGB30000
S6E2H16G0AGB30000
lmages are for reference only.Payment Methods
Delivery Services
ARM® Cortex®-M4F FM4 S6E2H1 Microcontroller IC 32-Bit Single-Core 160MHz 544KB (544K x 8) FLASH 121-FBGA (6x6)
Quick Inquiry
S6E2H16G0AGB30000
Specifications
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Spansion |
| Series | FM4 S6E2H1 |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Speed | 160MHz |
| Connectivity | CSIO, EBI/EMI, I2C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 100 |
| Program Memory Size | 544KB (544K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 121-FBGA (6x6) |
| Package / Case | 121-TFBGA |
| Base Product Number | S6E2H16 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | S6E2H16G0AGB3000A | S6E2H16G0AGV20000 | S6E2H16G0AGV2000M | S6E2H16E0AGV20000 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 32BIT 544KB FLASH 121FBGA | IC MCU 32BIT 544KB FLASH 120LQFP | IC MCU 32BIT 544KB FLASH 120LQFP | IC MCU 32BIT 544KB FLASH 80LQFP |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Packaging | Tray | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products
S6E2H14E0AGV20000
Infineon Technologies
S6E2H14E0AGV2000M
Infineon Technologies
S6E2H14F0AGV20000
Infineon Technologies
S6E2H14F0AGV2000M
Infineon Technologies
S6E2H14G0AGB30000
Infineon Technologies
S6E2H14G0AGB3000A
Infineon Technologies
S6E2H14G0AGV20000
Infineon Technologies
S6E2H14G0AGV2000M
Infineon Technologies
S6E2H16E0AGV20000
Infineon Technologies
S6E2H16E0AGV2000M
Infineon Technologies
S6E2H16F0AGV20000
Infineon Technologies

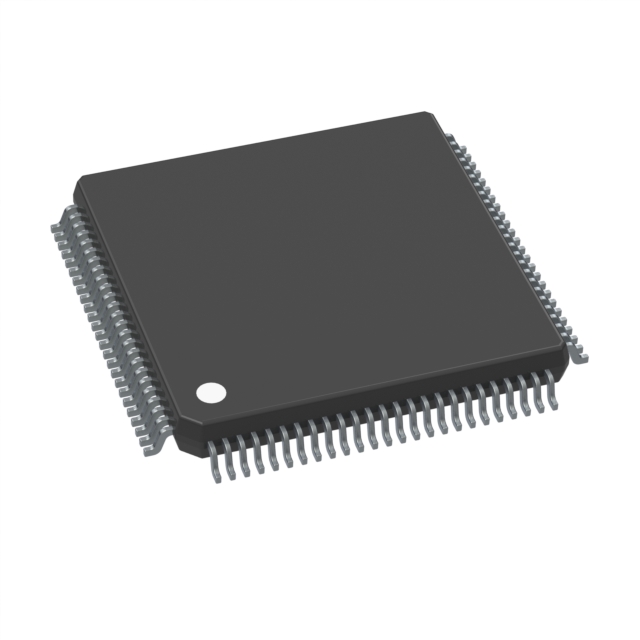

S6E2H16F0AGV2000M
Infineon Technologies

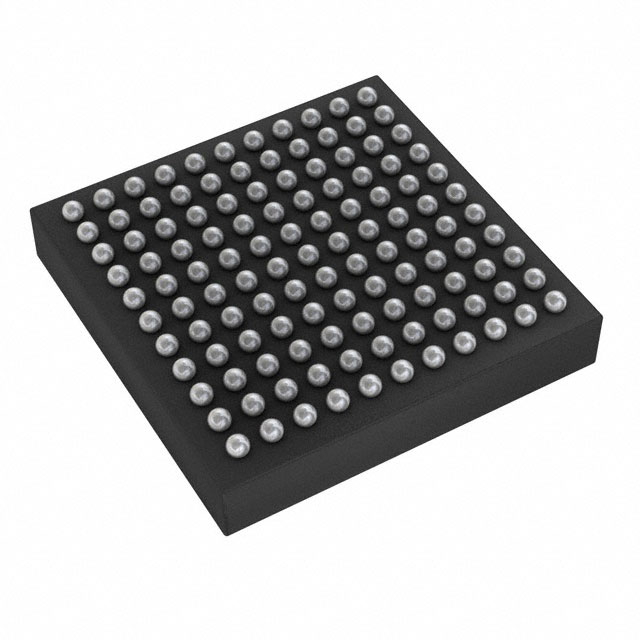

S6E2H16G0AGB3000A
Infineon Technologies

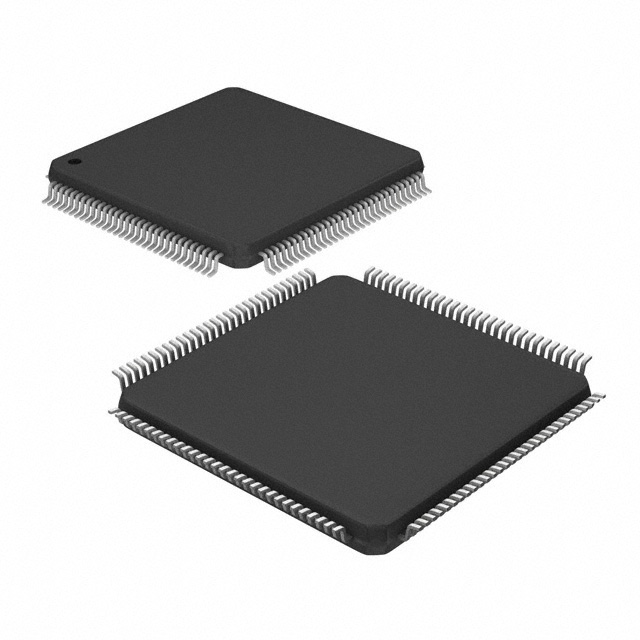

S6E2H16G0AGV20000
