S6E2H44F0AGV20000
lmages are for reference only.S6E2H44F0AGV20000
IC MCU 32BIT 288KB FLASH 100LQFP
Datasheet100-LQFP
70,778 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
ARM® Cortex®-M4F FM4 S6E2H4 Microcontroller IC 32-Bit Single-Core 160MHz 288KB (288K x 8) FLASH 100-LQFP (14x14)
S6E2H44F0AGV20000
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Infineon Technologies |
| Series | FM4 S6E2H4 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Speed | 160MHz |
| Connectivity | CANbus, CSIO, EBI/EMI, I2C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 80 |
| Program Memory Size | 288KB (288K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-LQFP (14x14) |
| Package / Case | 100-LQFP |
| Base Product Number | S6E2H44 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

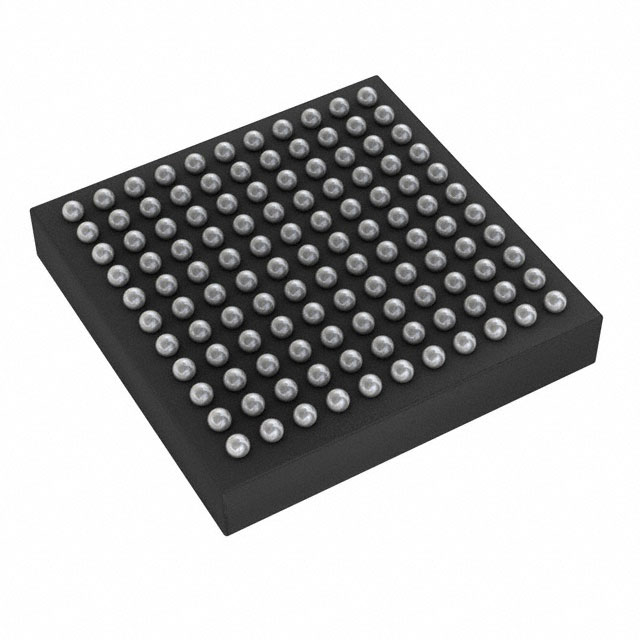

| Part Number | S6E2H44F0AGV2000M | S6E2H44E0AGV20000 | S6E2H44E0AGV2000M | S6E2H44G0AGB3000A |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 32BIT 288KB FLASH 100LQFP | IC MCU 32BIT 288KB FLASH 80LQFP | IC MCU 32BIT 288KB FLASH 80LQFP | IC MCU 32BIT 288KB FLASH 121FBGA |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Packaging | Tray | Tray | Tray | Tray |
