SB0603WC01-RG
lmages are for reference only.SB0603WC01-RG
LED GREEN/RED CLEAR 0603 SMD
Datasheet0603 (1608 Metric)
77,694 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green, Red 575nm Green, 635nm Red LED Indication - Discrete 2V Green, 2V Red 0603 (1608 Metric)
SB0603WC01-RG
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Visual Communications Company - VCC |
| Series | SpectraBright |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 40mcd Green, 160mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 575nm Green, 635nm Red |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.65mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

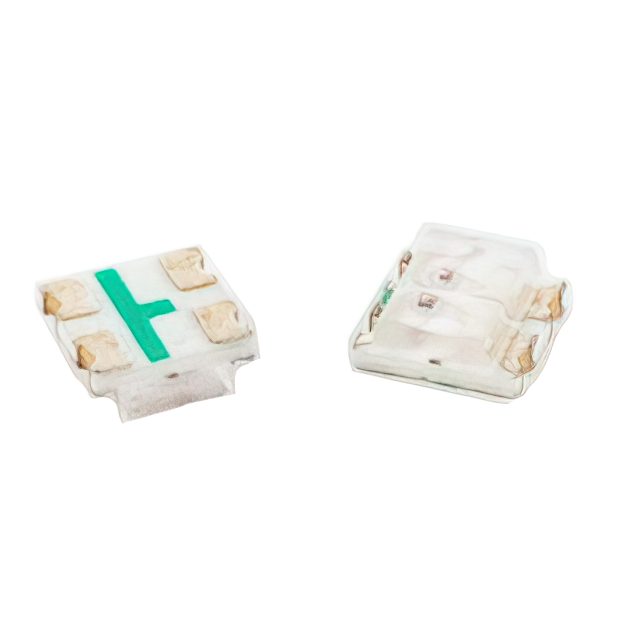

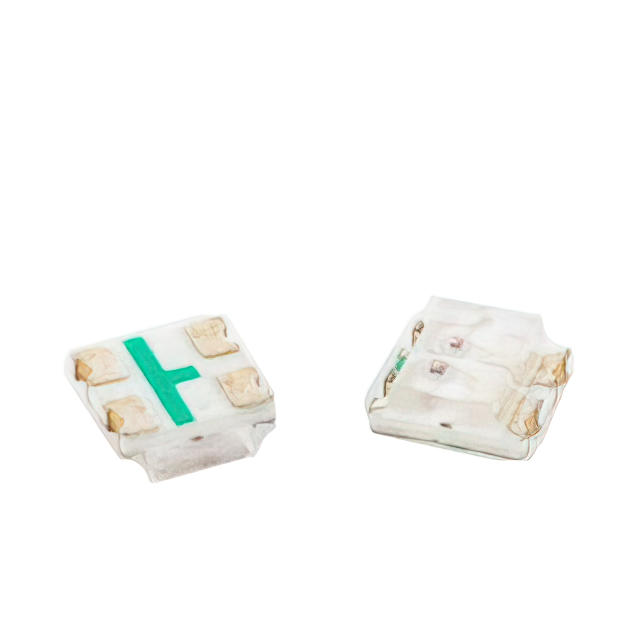

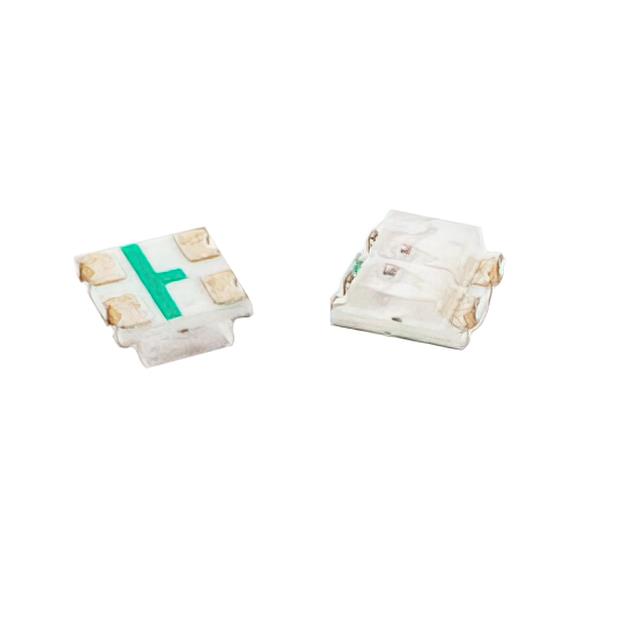

| Part Number | SB0606WC01-RG | SB0606WC01-RGB | SB0606WC02-RGB | LA E67B-V1AA-34-1-50-R18-Z |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | |||
| Description | LED GREEN/RED CLEAR 4SMD | LED RGB CLEAR 4SMD | LED RGB CLEAR 4SMD | LED AMBER CLEAR 4PLCC SMD |
| Series | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
